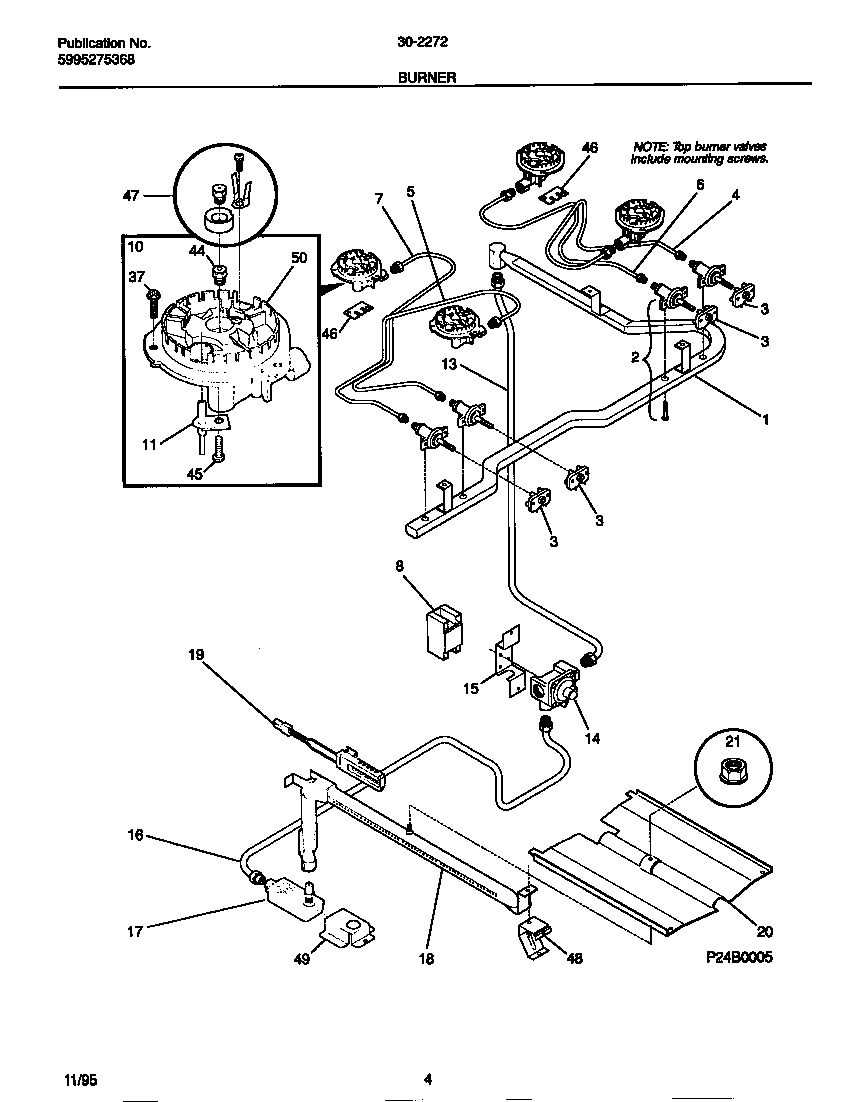

30-2272-00-04 03 – BURNER

Products

Position	Product
1	WCI 316066201
2A	VALVE, TOP, 2 POS, (4)
2B	316048200 Frigidaire Oven Screw
3A	WCI 316032001
3B	SWITCH HARNESS TERMINAL KIT
4	WCI 316059612
5	316059613 Frigidaire Oven Tube-LF
6	WCI 316059614
7	316059615 Frigidaire Oven Tube
8B	HARNESS-WIRING, MODULE/IGNITER (NON-ILLUSTRATED)
8A	5304505695 Frigidaire Oven Module
10	BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11	316011200 Frigidaire Oven Top Burner Igniter
13	WCI 316065005
14B	316021104 Frigidaire Oven Screw Assembly
14A	5303935125 Frigidaire Pressure Regulator
15	316091600 Frigidaire Oven Bracket
16	316065006 Frigidaire Tube P1
17	3203459 Frigidaire Oven Range Dual Gas Safety Valve
18	WCI 3131439
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	WCI 5303288409
21	5303013272 Frigidaire Oven Nut
37	316069301 Frigidaire Oven Burner Mounting Primary Screw
44	ORIFICE-TOP BURNER, (4)
45	WCI 316011100
46	WCI 316074700
47	WCI 5303286386
48	WCI 3018603
49	BRKT.-VALVE
50	BURNER-TOP, (4), INCLUDES 37
