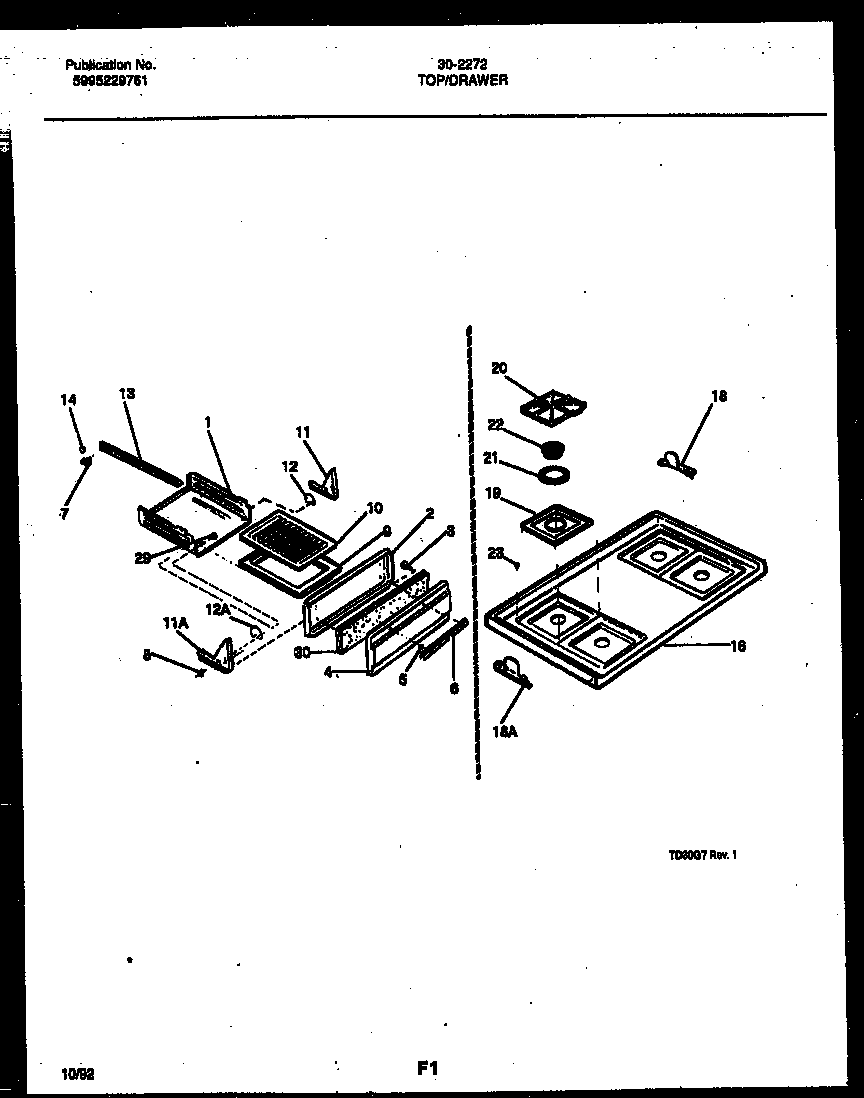

30-2272-23-01 05 – COOKTOP AND BROILER DRAWER PARTS

Products

PositionProduct
*81236WCI 5303281584
1DRAWER-BROILER
2WCI 3202803
3SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL – BROILER ALMD
5FSTNR, SPACER (2)
6HANDLE-DRAWER, BRUSHED CHROME
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11AWCI 5303281620
11WCI 5303281621
12SPRING-BROILER, RH
12AWCI 3018618`
13WCI 3131153
14WCI 3206216
16WCI 316010402
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
18BRACKET-HINGE,MAIN TOP RH
18ABRACKET-HINGE,MAIN TOP LH
19WCI 316011400
20WCI 5303269632
21WCI 316035101
22316010901 Frigidaire Burner Cap P1
23316069301 Frigidaire Oven Burner Mounting Primary Screw
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
