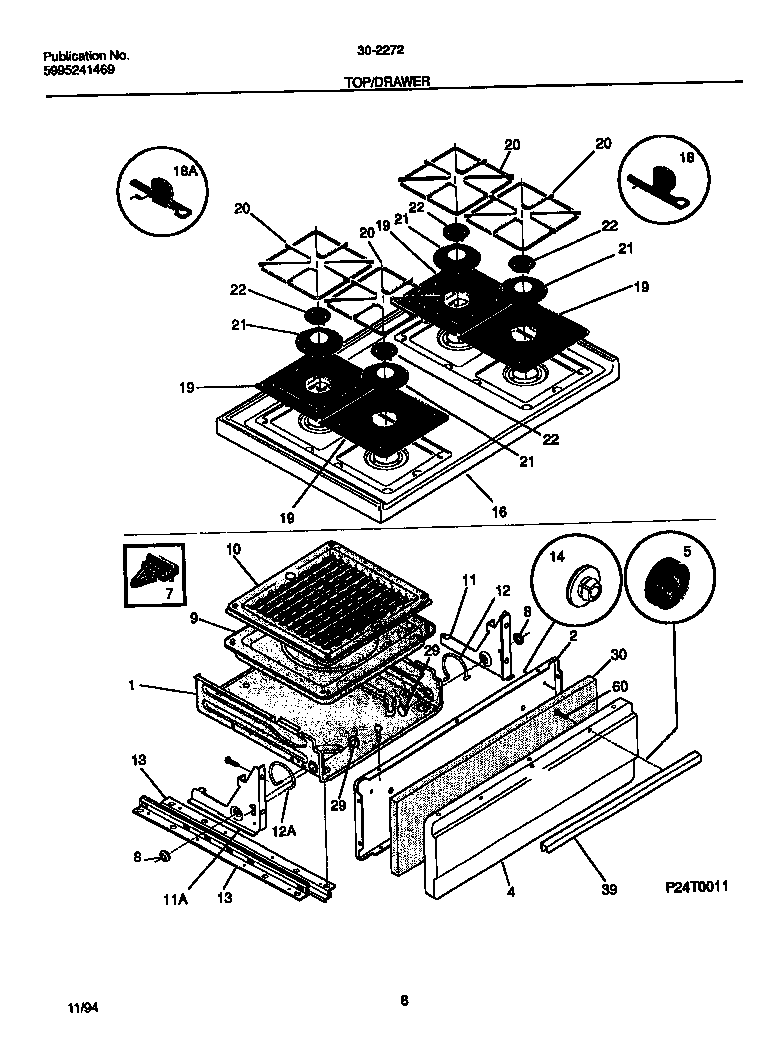

30-2272-23-03 05 – TOP/DRAWER

Products

Position	Product
*29764	WCI 5303281584
1	DRAWER-BROILER
2	WCI 3202803
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PANEL - BROILER ALMD
5	FSTNR, SPACER (2)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 5303131356
11	WCI 5303281621
11A	WCI 5303281620
12	SPRING-BROILER, RH
12A	WCI 3018618`
13	WCI 3131153
14	WCI 3206216
16	WCI 316010402
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	BRACKET-HINGE,MAIN TOP RH
18A	BRACKET-HINGE,MAIN TOP LH
18B	131243700 Frigidaire Screw
19	WCI 316011400
20	WCI 5303269632
21	WCI 316035101
22	316010901 Frigidaire Burner Cap P1
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	HANDLE-DRAWER, BRUSHED CHROME
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
