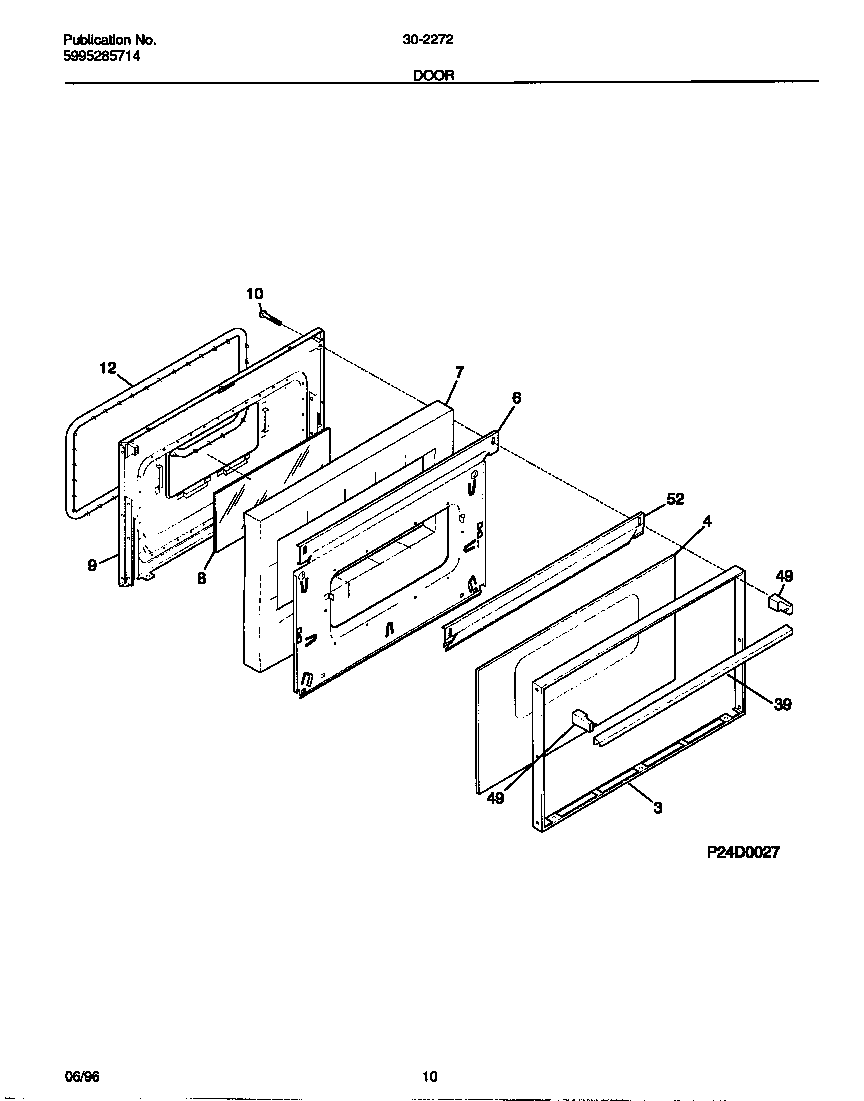

30-2272-23-06 06 – DOOR

30-2272-23-06 06 – DOOR

Written by

in

30-2272-23-06 06 – DOOR

Products

PositionProduct
*92292SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*92293WCI 5303269859
*922965303285179 Frigidaire Oven Door Screw
*922945303271648 Frigidaire Oven Screw
*92297131243700 Frigidaire Screw
*92295WCI 5303280311
3WCI 316067802
4WCI 316089000
6WCI 316088403
7WCI 316076401
8GLASS-OVEN DOOR, AIRWASH
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303202011 Frigidaire Door Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
52WCI 316081303
