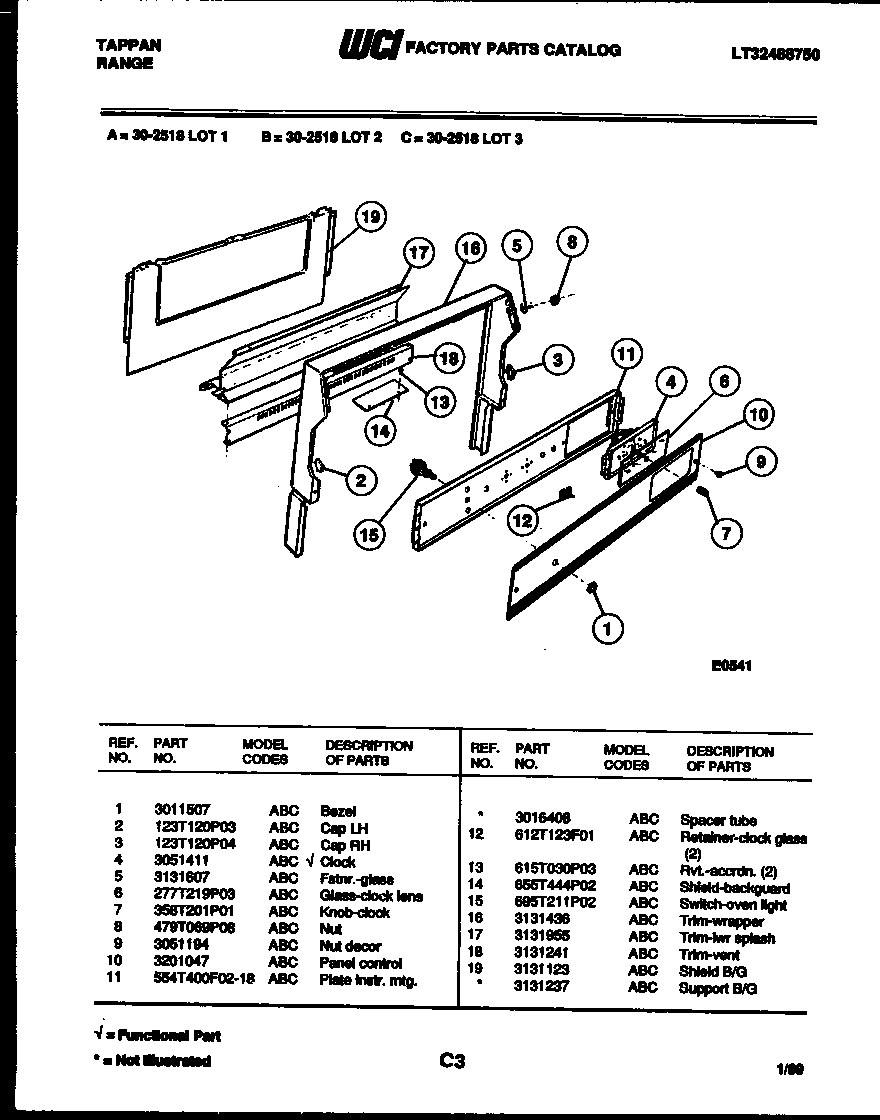

30-2518-23-01 02 – BACKGUARD AND CONTROL PARTS

Products

PositionProduct
*19615SUPPORT-BACKGUARD (2)
1BEZEL – SWITCH (2)
2WCI 123T120P03
3WCI 123T120P04
4WCI 3051411
5FASTENER, GLASS (2)
6GLASS-CLOCK
7WCI 358T201P01
8NUT (10-24) (NON-ILLUSTRATED)
9NUT – DECOR (2)
10WCI 3201047
11PLATE INSTRUMENT MOUNTING
11AWCI 3016408
12RETAINR-CLOCK LENS (2)
13RIVET ACCORDIAN (NON-ILLUSTRATED)
14SHIELD-BACKGUARD (NON-ILLUSTRATED)
15SWITCH-OV LT
16WCI 3131436
17TRIM-SPLASHER
18WCI 3131241
19SHIELD-BACKGUARD,REAR WALL
