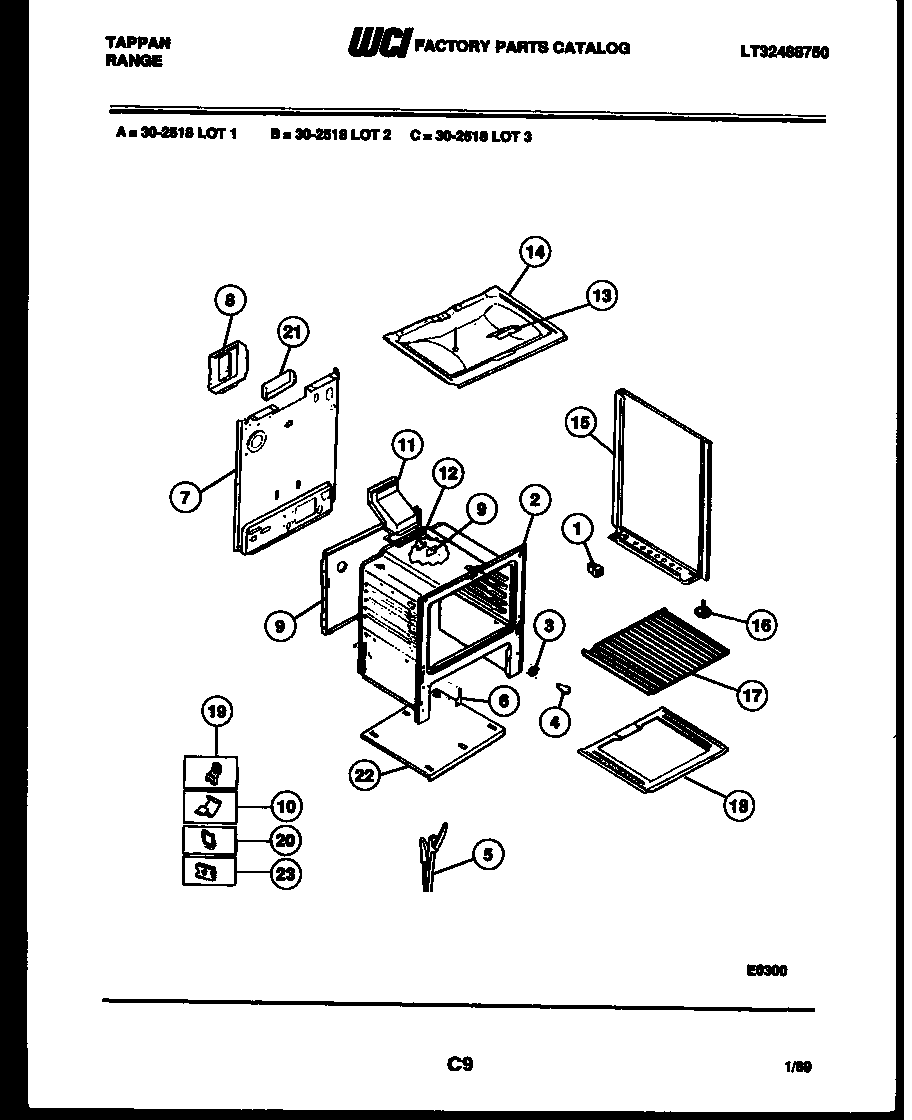

30-2518-23-02 07 – BODY PARTS

Products

Position	Product
*19626	316282700 Frigidaire Oven Screw
*19626	COVER-BURNER BOX
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
6A	5304534000 Frigidaire Cord
7	WCI 3011463
8	WCI 3131660
9	COVER PLATE (NON-ILLUSTRATED)
10	CLIP, WIRE
11	WCI 3131904
12	316542102 Frigidaire Flue Gasket
13	WCI 3131101
14	WCI 095T030F02-86
15A	PNL B/S-RH (ALMOND)
15	PNL B/S-LH (ALMOND)
15A	PNL. B/S (LH ALMOND)
15	PNL. B/S (RH ALMOND)
16	WCI 636M004P01
17	316067902 Frigidaire Oven Rack
18A	INSULATION, OVEN WRAPPER
18B	WCI 3131246
18	WCI 058T036F02-86
19A	FSTNR-POWER CORD (NON-ILLUSTRATED)
19	5303284616 Frigidaire Range Bulb Clip Thermostat
20	316539800 Frigidaire Oven Retainer
21A	3131903 Frigidaire Door/Drawer Bumper
21B	316064600 Frigidaire Oven Support
21	WCI 3131348
22B	COVER-POWER CORD, (NON-ILLUSTRATED)
22A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
22	WCI 3131180
23	3203010 Frigidaire Clip
