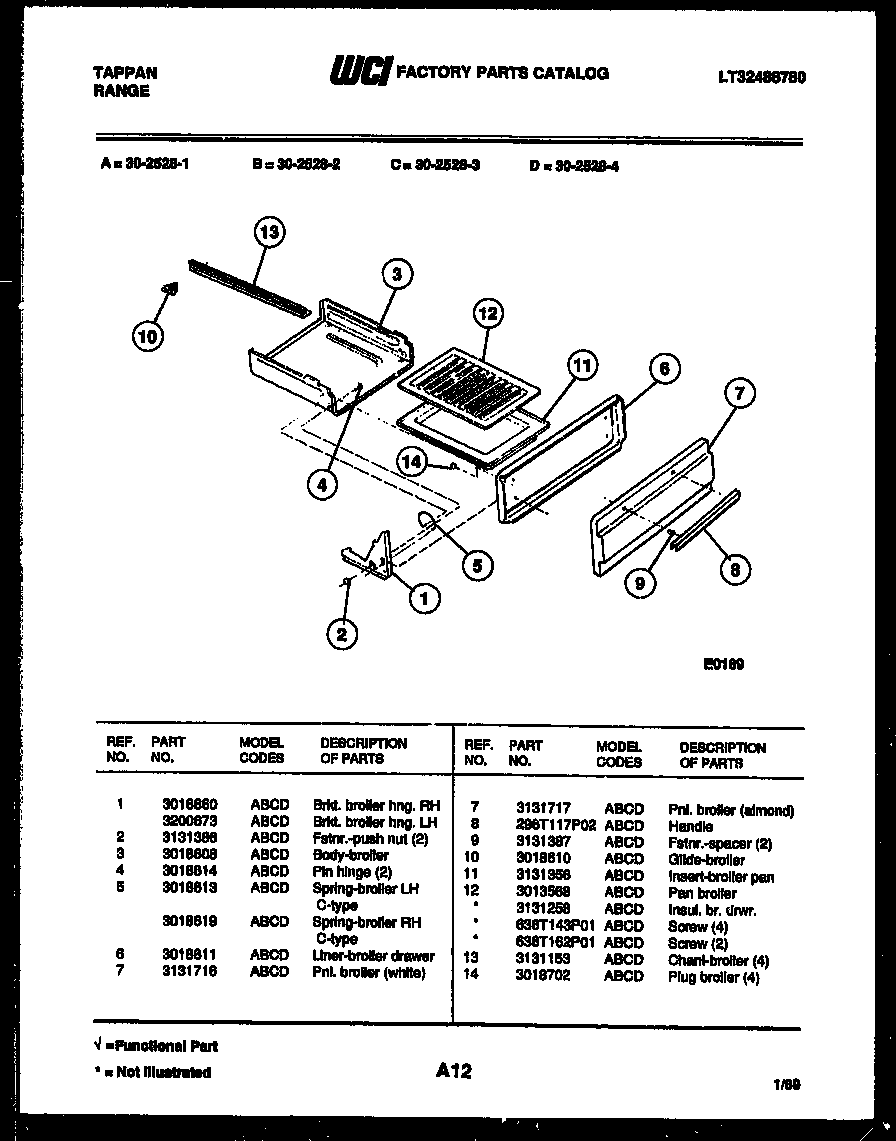

30-2528-00-02 05 – BROILER DRAWER PARTS

Products

Position	Product
1	WCI 3018860
1A	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5A	SPRING-BROILER, RH
5	PILOT-OVEN
6	LINER – BROILER DRWR
7	PANEL BROILR-(WHITE)
8	WCI 296T117P02
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 3131356
12C	SCREW PNL ASSY (2)
12A	INSUL, BRL, DRWR (NON-ILLUSTRATED)
12B	5303300265 Frigidaire Oven Screw
12	WCI 3013568
13	WCI 3131153
14	WCI 3018702
