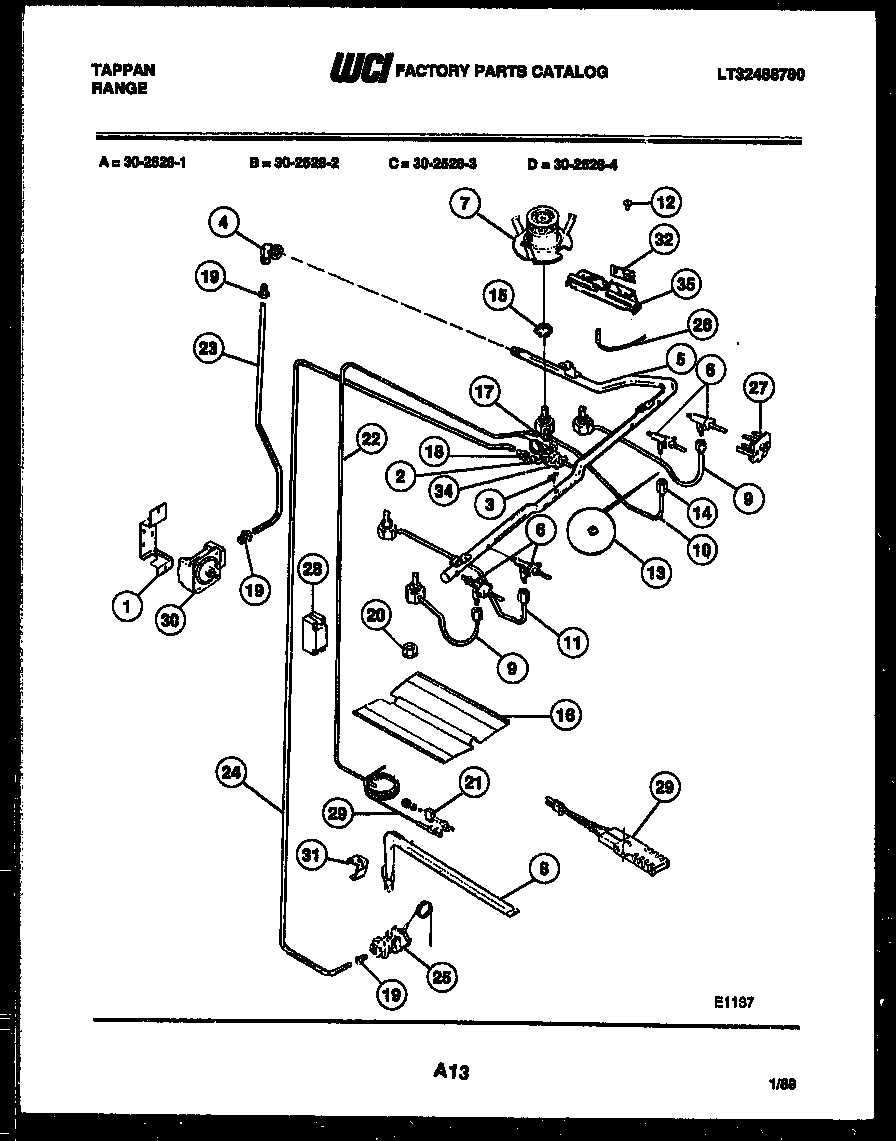

30-2528-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

30-2528-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-2528-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1BRACKET-REGULAR
2WCI 722T073P01
3ADAPTER-THERMOSTAT
4ELBOW 1/2 NP TO 9/16-24
5WCI 439T055P07
6WCI 3017542
7BURNER TOP (4)
8WCI 3131571
9BURNER TUBE-RF & LF
10WCI 079T033H02
11WCI 079T033H03
12WCI 3051420
13WCI 3012358
14NUT COMPRESSN (4)
15NUT SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
21PILOT-OVEN
22TUBE-OVN PILOT 3/16
23TUBE-REGUL TEE
24TUBE-ALUMINUM 3/8
25WCI 3131405
26IGNITER-ELEC TOP BURN
27SWITCH-IGNITER (4)
285303200332 Frigidaire Oven Module
29IGNITER-ELECTRODE OVEN
30CONTROL – REGULAR
31WCI 3018603
32WCI 3018617
34WCI 695T220P01
35WCI 136T355W03
