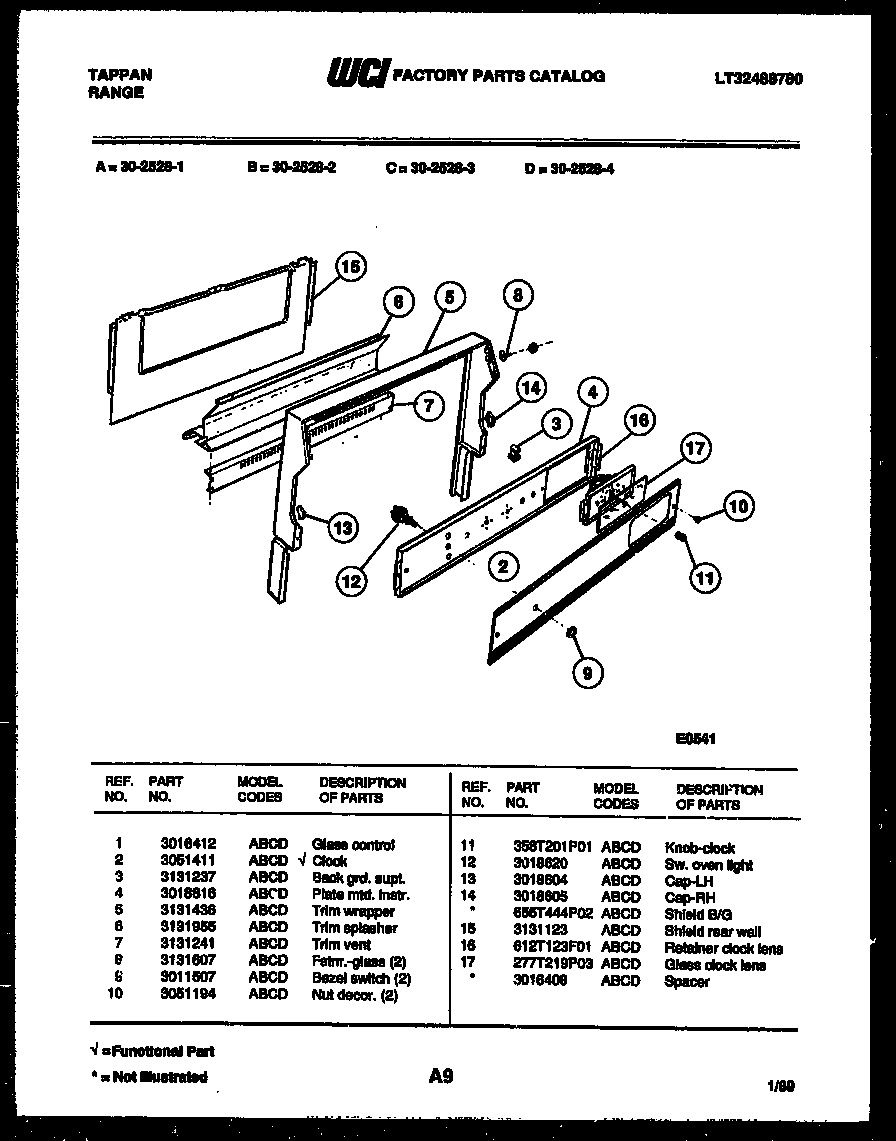

30-2528-00-04 02 – BACKGUARD

Products

Position	Product
*17797	WCI 3016408
1	WCI 3016412
2	WCI 3051411
3	SUPPORT-BACKGUARD (2)
4	PLATE INSTR MOUNTING
5	WCI 3131436
6	TRIM-SPLASHER
7	WCI 3131241
8	FASTENER, GLASS (2)
9	BEZEL – SWITCH (2)
10	NUT – DECOR (2)
11	WCI 358T201P01
12	WCI 3018620
13	CAP-LH
14	CAP-RH
14A	SHIELD-BACKGUARD (NON-ILLUSTRATED)
15	SHIELD-BACKGUARD,REAR WALL
16	RETAINR-CLOCK LENS (2)
17	GLASS-CLOCK
