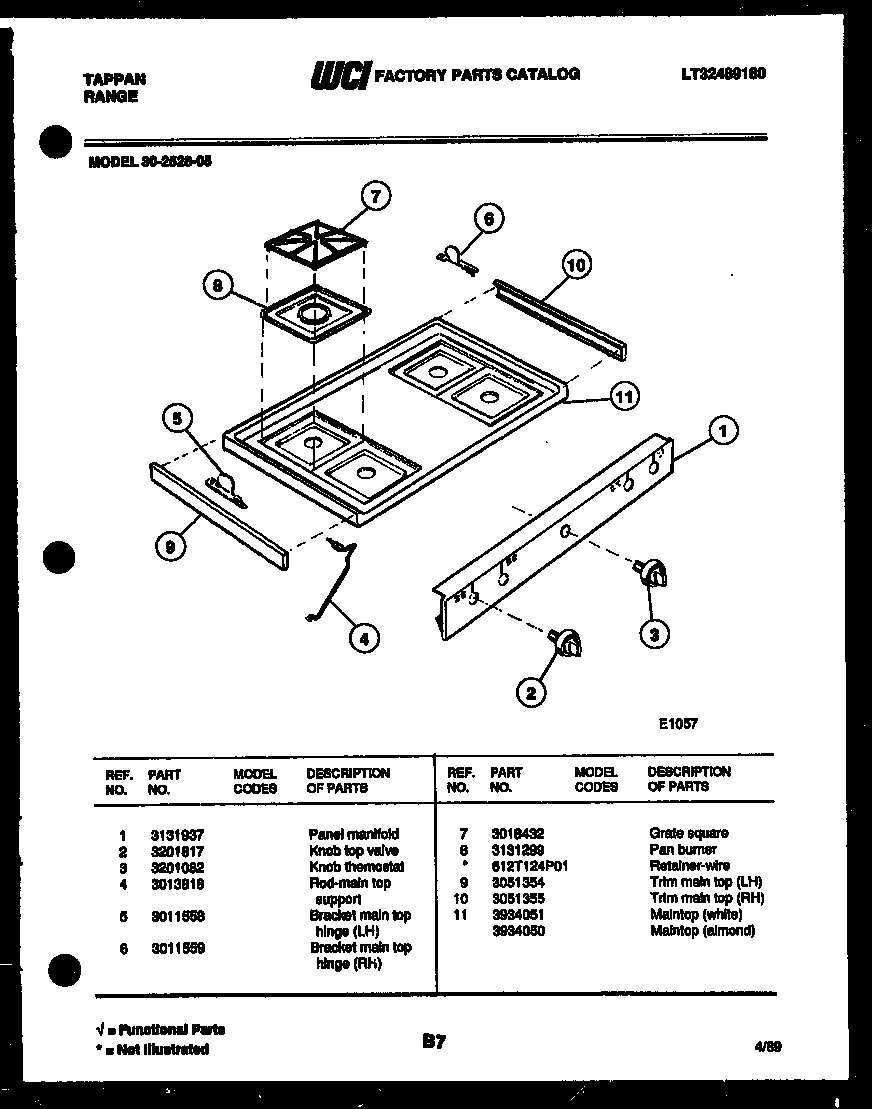

30-2528-00-05 03 – COOKTOP PARTS

30-2528-00-05 03 – COOKTOP PARTS

Written by

in

30-2528-00-05 03 – COOKTOP PARTS

Products

PositionProduct
1WCI 3131937
2WCI 3201817
3WCI 3201082
4ROD – MAINTOP SUPT.
5BRKT-MAIN TOP HNG LH
6BRKT-MAIN TOP HNG RH
7GRATE (4)
8WCI 3131299
8AWCI 612T124P01
9WCI 3051354
10WCI 3051355
11WCI 3934051
