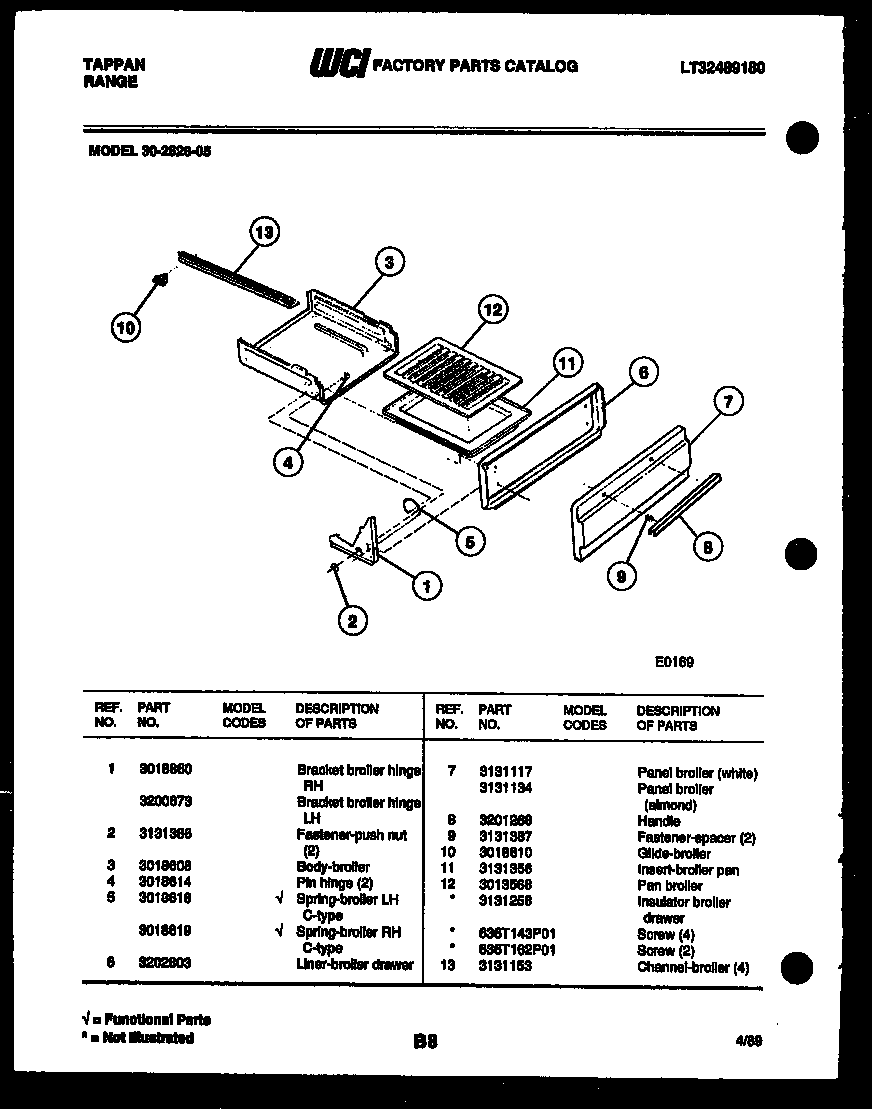

30-2528-00-05 04 – BROILER DRAWER PARTS

Written by

Products

Position	Product
1	WCI 3018860
1A	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5A	SPRING-BROILER, RH
5	WCI 3018618`
6	WCI 3202803
7	PNL-DRAWER (WHTE)
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 3131356
12	WCI 3013568
12B	5303300265 Frigidaire Oven Screw
12A	INSUL, BRL, DRWR (NON-ILLUSTRATED)
12B	SCREW PNL ASSY (2)
13	WCI 3131153
