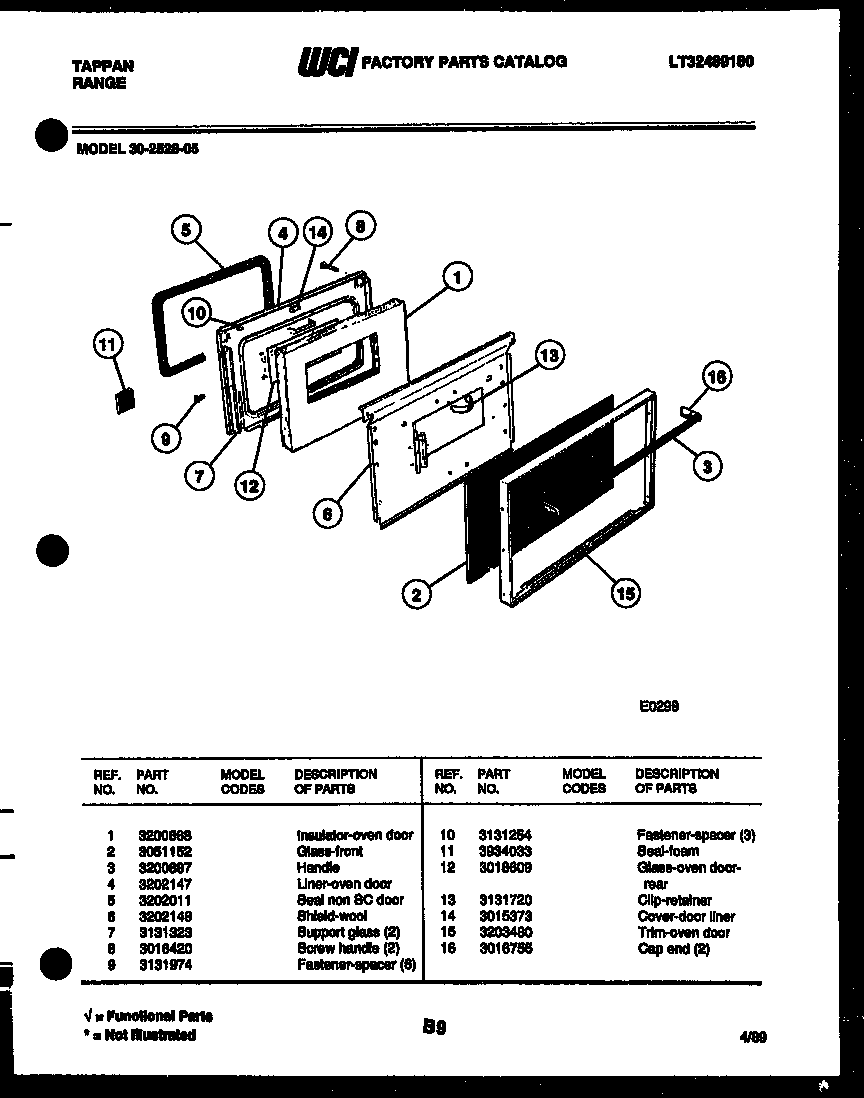

30-2528-00-05 05 – DOOR PARTS

Written by

Products

Position	Product
1	INSULATION-OVEN DOOR
2	GLASS-OVEN DOOR, BLACK, OUTER
3	HANDLE-OVEN DOOR
4	LINER
5	5303202011 Frigidaire Door Seal
6	WCI 3202148
7	SUPPORT, GLASS
8	SCREW – HANDLE (2)
9	FSTNR. SPACER (6)
10	CLIP
11	SEAL, FOAM (4)
12	GLASS-OV DR (REAR)
13	CLIP-RETAINING
14	WCI 3015373
15	WCI 3203480
16	316137003 Frigidaire Range / Cooktop End Cap
