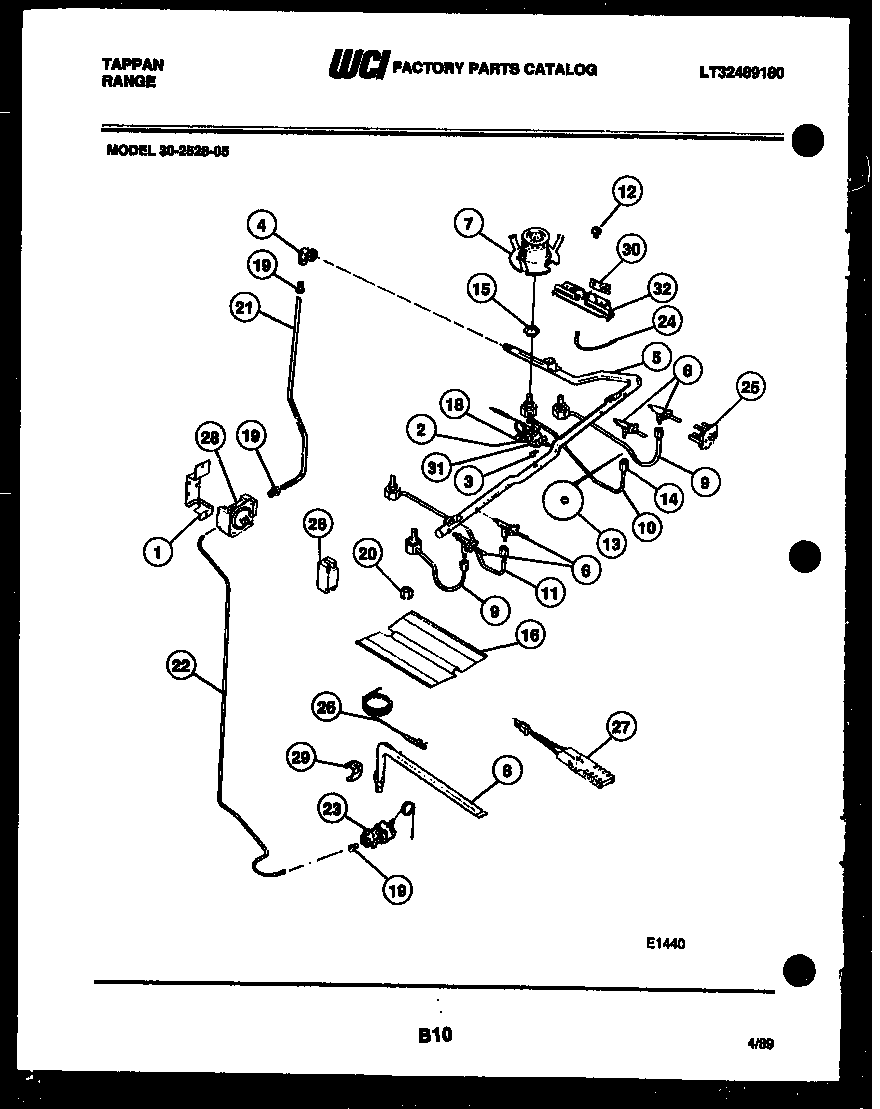

30-2528-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

30-2528-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-2528-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*21352BRKT.-VALVE
1316091600 Frigidaire Oven Bracket
2WCI 3201107
4ELBOW 1/2 NP TO 9/16-24
5WCI 3201106
6WCI 3017542
7BURNER TOP (4)
8WCI 3131439
9BURNER TUBE-RF & LF
10WCI 3011569
11WCI 3011570
12WCI 3051420
13WCI 3012358
14NUT COMPRESSN (4)
15NUT, SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
21TUBE-REGUL TEE
22TUBE – ALUM 3/8
233203459 Frigidaire Oven Range Dual Gas Safety Valve
24IGNITER-TOP BURNER (4)
25SWITCH-IGNITER (4)
265303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
275303935066 Frigidaire Oven Flat Igniter 17" Leads
285303935125 Frigidaire Pressure Regulator
29WCI 3018603
30WCI 3018617
31WCI 695T220P01
32WCI 136T355W03
