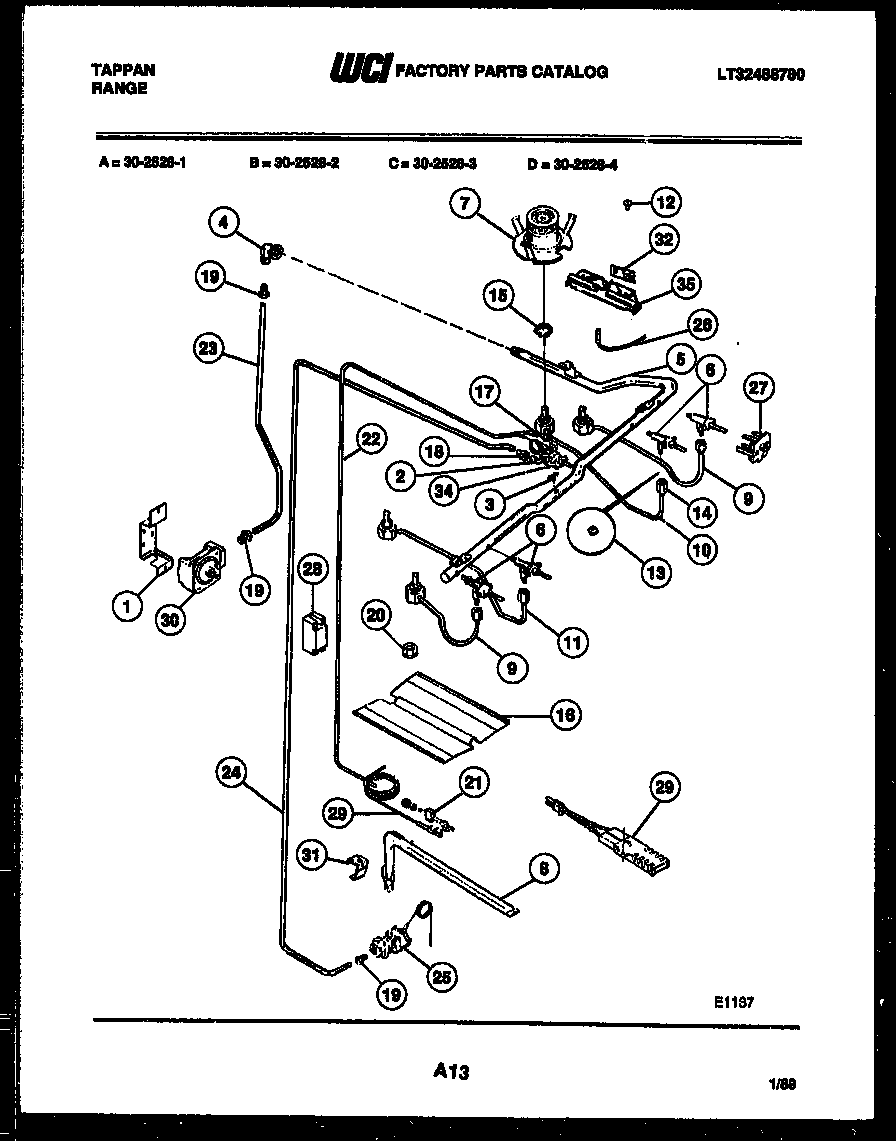

30-2528-23-04 06 – BURNER, MANIFOLD AND GAS CONTROL

30-2528-23-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-2528-23-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*17806BRKT.-VALVE
1316091600 Frigidaire Oven Bracket
2WCI 3201107
4ELBOW 1/2 NP TO 9/16-24
5AWCI 3201106
6WCI 3017542
7BURNER TOP (4)
8WCI 3131439
9BURNER TUBE-RF & LF
10WCI 079T033H02
11WCI 079T033H03
12WCI 3051420
13WCI 3012358
14NUT COMPRESSN (4)
15NUT SPECIAL
16WCI 3131327
17WCI 3131404
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
23TUBE-REGUL TEE
24TUBE – ALUM 3/8
253203459 Frigidaire Oven Range Dual Gas Safety Valve
26IGNITER-TOP BURNER (4)
27SWITCH-IGNITER (4)
285303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
295303935066 Frigidaire Oven Flat Igniter 17" Leads
305303935125 Frigidaire Pressure Regulator
31WCI 3018603
32WCI 3018617
34WCI 695T220P01
35WCI 136T355W03
