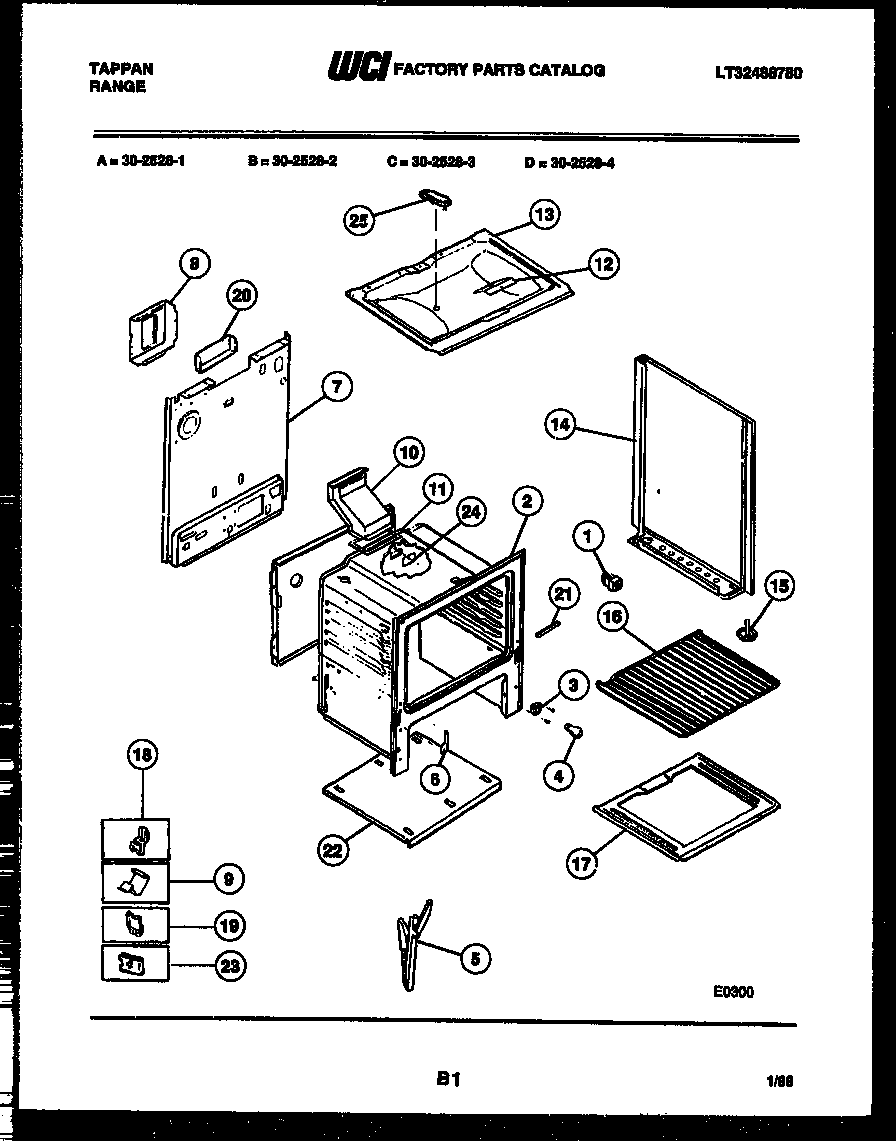

30-2528-23-04 07 – BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
6A	5304534000 Frigidaire Cord
7	WCI 3131567
8	WCI 3131660
9	CLIP-WIRE
10	WCI 3131904
11	316542102 Frigidaire Flue Gasket
12	WCI 3131101
13	WCI 3011597
14	PNL B/S-LH (ALMOND)
14A	PNL B/S-RH (ALMOND)
15	WCI 08010569
16	316067902 Frigidaire Oven Rack
17B	WCI 3131246
17	WCI 058T036F02-86
17A	INSULATION, OVEN WRAPPER
18	5303284616 Frigidaire Range Bulb Clip Thermostat
18A	FRONT-COMPLETE
19	316539800 Frigidaire Oven Retainer
20	WCI 3131348
21A	316064600 Frigidaire Oven Support
21B	3131903 Frigidaire Door/Drawer Bumper
21C	PLATE-OV. LT MTG (NON-ILLUSTRATED)
21	COVER-BURNER BOX
22	WCI 3131180
22A	COVER-POWER CORD, (NON-ILLUSTRATED)
23	3203010 Frigidaire Clip
23A	316282700 Frigidaire Oven Screw
24	COVER-IGNITOR
25	WCI 3015371
