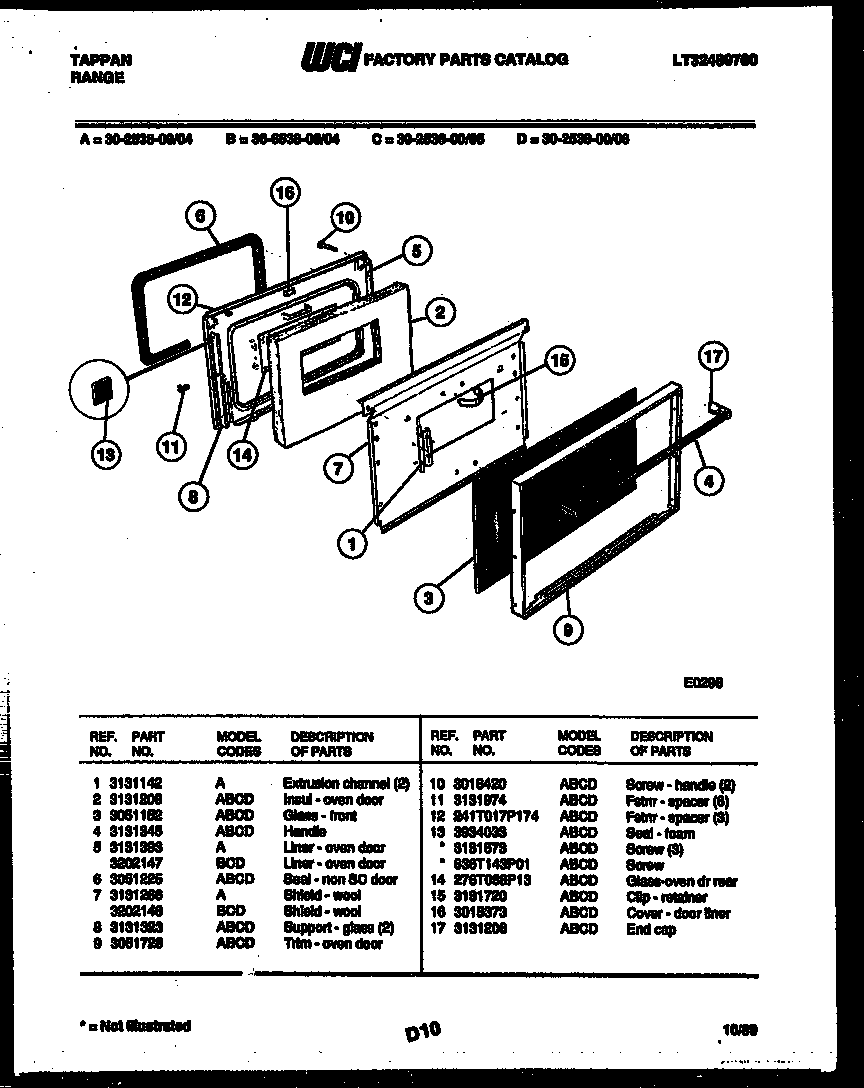

30-2538-00-04 04 – DOOR PARTS

Products

Position	Product
1	EXTRUSION-CHANNL
2	INSUL. OVEN DR
3	GLASS-OVEN DOOR, BLACK, OUTER
4	HANDLE
5	WCI 3131393
6	5303202011 Frigidaire Door Seal
7	WCI 3131266
8	SUPPORT, GLASS
9	WCI 3051728
10	SCREW – HANDLE (2)
11	FSTNR. SPACER (6)
12	FASTNR-NYLON PUSH-IN SPACR (5)
13	SEAL, FOAM (4)
13A	SCREW DOOR MTG
13A	5303300265 Frigidaire Oven Screw
14	OVEN GLASS-REAR
15	CLIP-RETAINING
16	WCI 3015373
17	316137003 Frigidaire Range / Cooktop End Cap
