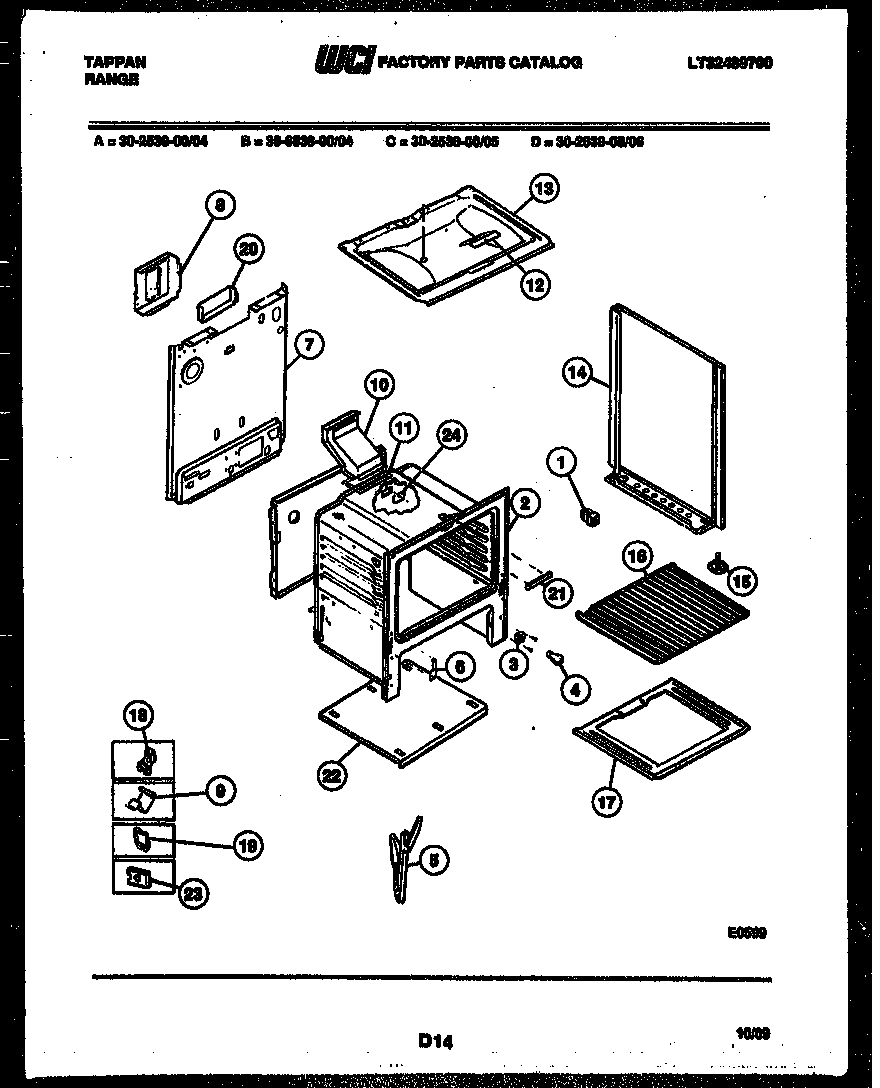

30-2538-00-04 07 – BODY PARTS

30-2538-00-04 07 – BODY PARTS

Written by

in

30-2538-00-04 07 – BODY PARTS

Products

PositionProduct
*33460ANTI-TIP KIT (NOT ILLUSTRATED)
1WCI 665T188P02
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3131567
8WCI 666T421F02-18
9CLIP, WIRE
10WCI 252T048W01-18
11316542102 Frigidaire Flue Gasket
12WCI 3131101
13WCI 095T030F02-86
14B/S-RH-(WHITE)
14B/S-LH-(WHITE)
15WCI 636M004P01
16316067902 Frigidaire Oven Rack
17AWCI 3131201
17WCI 058T036F02-86
17BWCI 3131246
185303284616 Frigidaire Range Bulb Clip Thermostat
18AFSTNR-POWER CORD (NON-ILLUSTRATED)
19316539800 Frigidaire Oven Retainer
20WCI 3131348
21B316064600 Frigidaire Oven Support
21A3131903 Frigidaire Door/Drawer Bumper
21COVER FRNT MAIN (NON-ILLUSTRATED)
22WCI 3131180
22APLATE-OV. LT MTG (NON-ILLUSTRATED)
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
233203010 Frigidaire Clip
23A316282700 Frigidaire Oven Screw
24COVER PLATE (NON-ILLUSTRATED)
