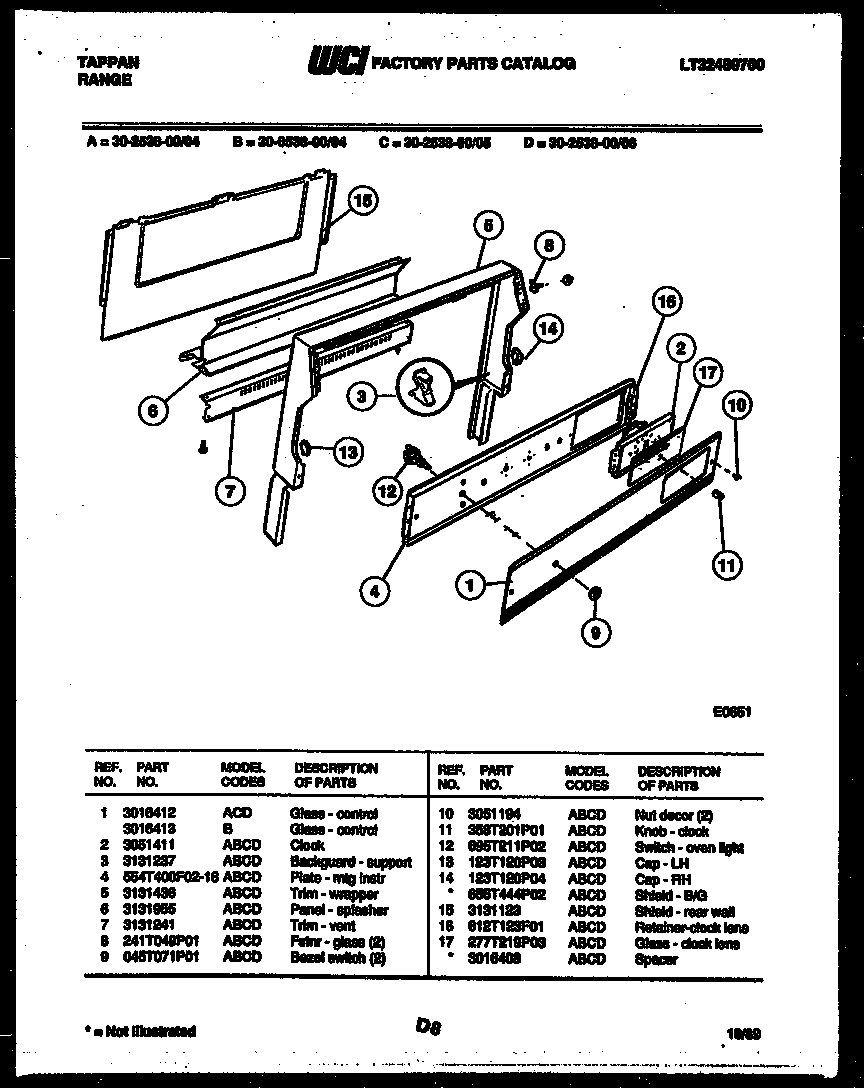

30-2538-23-04 02 – BACKGUARD

30-2538-23-04 02 – BACKGUARD

Written by

in

30-2538-23-04 02 – BACKGUARD

Products

PositionProduct
*33439WCI 3016408
1WCI 3016412
2WCI 3051411
3SUPPORT-BACKGUARD (2)
4PLATE INSTRUMENT MOUNTING
5WCI 3131436
6TRIM-SPLASHER
7WCI 3131241
8FSTNR-GLASS(2)
9WCI 045T071P01
10NUT – DECOR (2)
11WCI 358T201P01
12SWITCH-OV LT
13WCI 123T120P03
14WCI 123T120P04
14ASHIELD-BACKGUARD (NON-ILLUSTRATED)
15SHIELD-BACKGUARD,REAR WALL
16RETAINR-CLOCK LENS (2)
17GLASS-CLOCK
