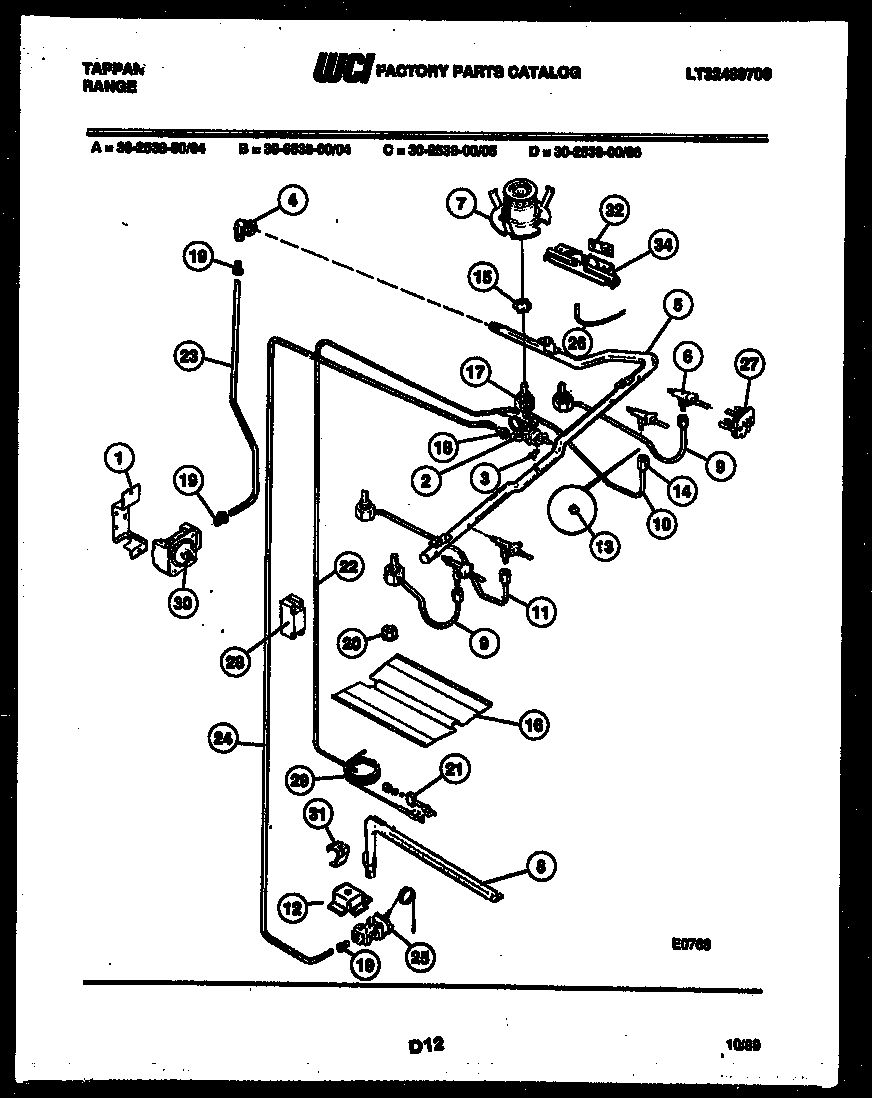

30-2538-23-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1316091600 Frigidaire Oven Bracket
2WCI 3201107
4ELBOW 1/2 NP TO 9/16-24
5WCI 3201106
6WCI 3017542
7WCI 079T032S02
8WCI 3131439
9BURNER TUBE-RF & LF
10WCI 3011569
11WCI 3011570
12WCI 3131430
13WCI 247T074P01
14NUT COMPRESSN (4)
15NUT SPECIAL
16WCI 3131327
17WCI 3131404
18WCI 3131403
19FITTING-LOXIT (8)
205303013272 Frigidaire Oven Nut
23TUBE-REGUL TEE
24TUBE – ALUM 3/8
253203459 Frigidaire Oven Range Dual Gas Safety Valve
26WCI 3051105
27IGN.-SWITCH
285303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
295303935066 Frigidaire Oven Flat Igniter 17" Leads
305303935125 Frigidaire Pressure Regulator
31WCI 072T821F01
32RETAINER ELECTROS
33WCI 695T220P01
34WCI 136T355W03
