30-2542-00-01 02 – BACKGUARD

30-2542-00-01 02 – BACKGUARD

Written by

in

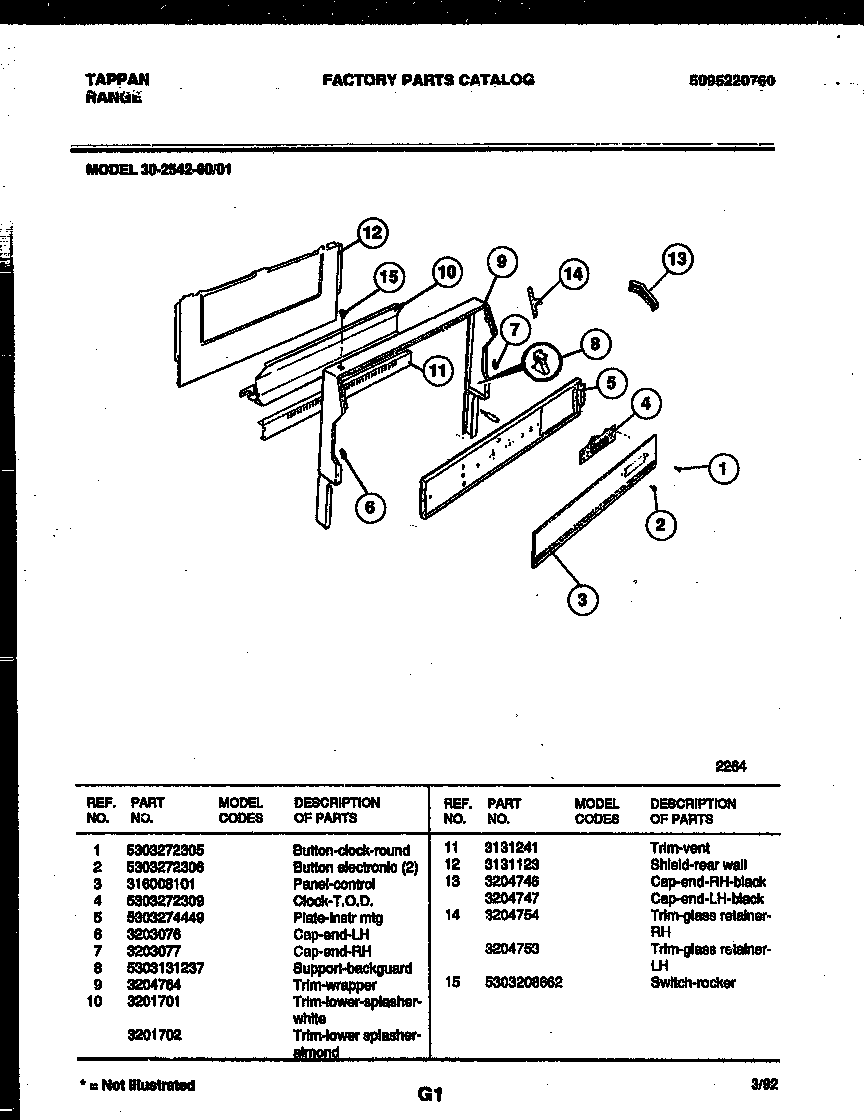

30-2542-00-01 02 – BACKGUARD

Products

PositionProduct
1KNOB-TIMER BUTTON
2BUTTON-CLOCK
3PANEL-CONTROL, GLASS
4WCI 5303272309
5PLATE-INSTRUMENT
6CAP-LH
7CAP-RH
8SUPPORT-BACKGUARD,(2)
9WCI 3204764
10TRIM-LOWER SPLASHER (WHITE)
11WCI 3131241
12SHIELD-BACKGUARD,REAR WALL
13WCI 3204746
13WCI 3204747
14TRIM-GLASS RETAINER,RH
14TRIM-GLASS RETAINER,LH
155308015487 Frigidaire Switch-Oven Light
