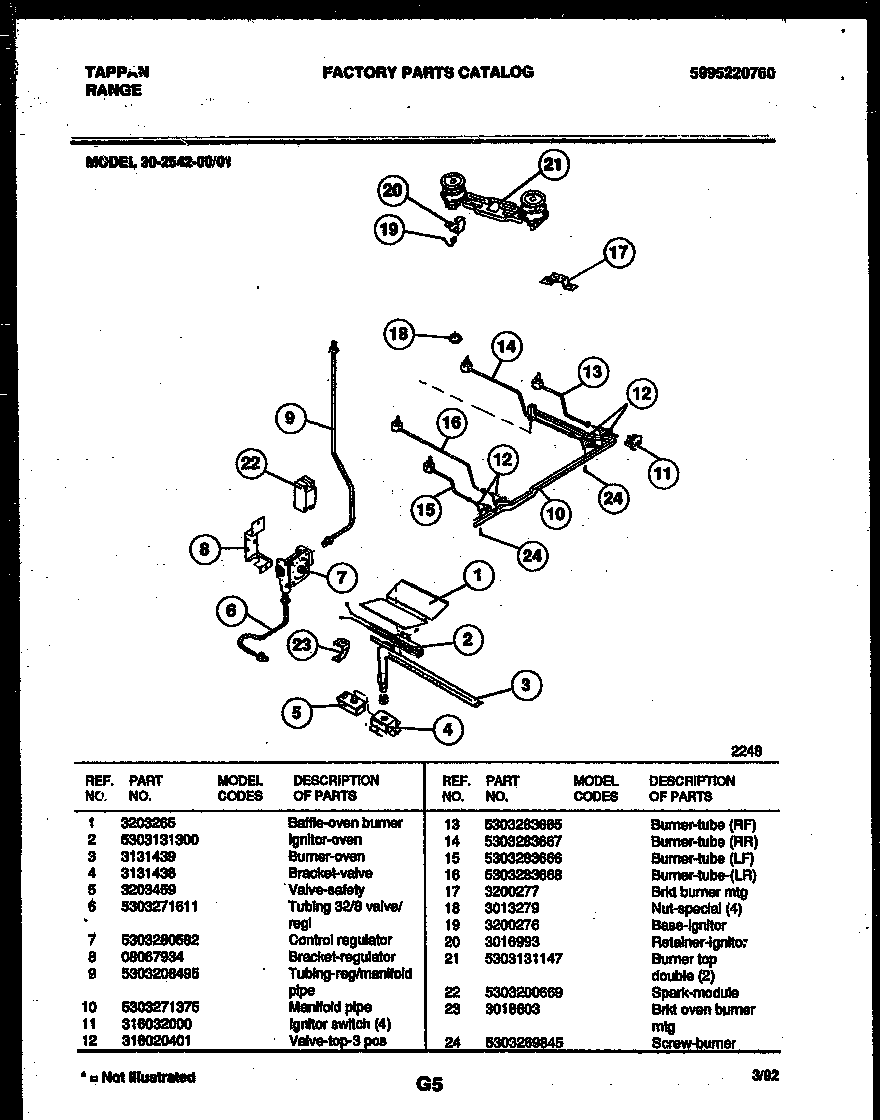

30-2542-00-01 06 – BURNER PARTS

30-2542-00-01 06 – BURNER PARTS

Written by

in

30-2542-00-01 06 – BURNER PARTS

Products

PositionProduct
1WCI 3203265
25303935066 Frigidaire Oven Flat Igniter 17" Leads
3WCI 3131439
4BRKT.-VALVE
53203459 Frigidaire Oven Range Dual Gas Safety Valve
6316065006 Frigidaire Tube P1
75303935125 Frigidaire Pressure Regulator
8316091600 Frigidaire Oven Bracket
9TUBE-ALUM 3/8 REG/MANIFOLD PIPE
10WCI 5303271375
11SWITCH-IGNITER, (4)
12VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
13WCI 5303283665
14WCI 5303283667
15WCI 5303283666
16WCI 5303283668
17BRACKET BURNER MTG
18NUT, SPECIAL
19IGNITER-TOP BURNER, BASE, (2)
203016993 Frigidaire Oven Retainer
21BURNER-TOP-DOUBLE
225303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
23WCI 3018603
24316048200 Frigidaire Oven Screw
