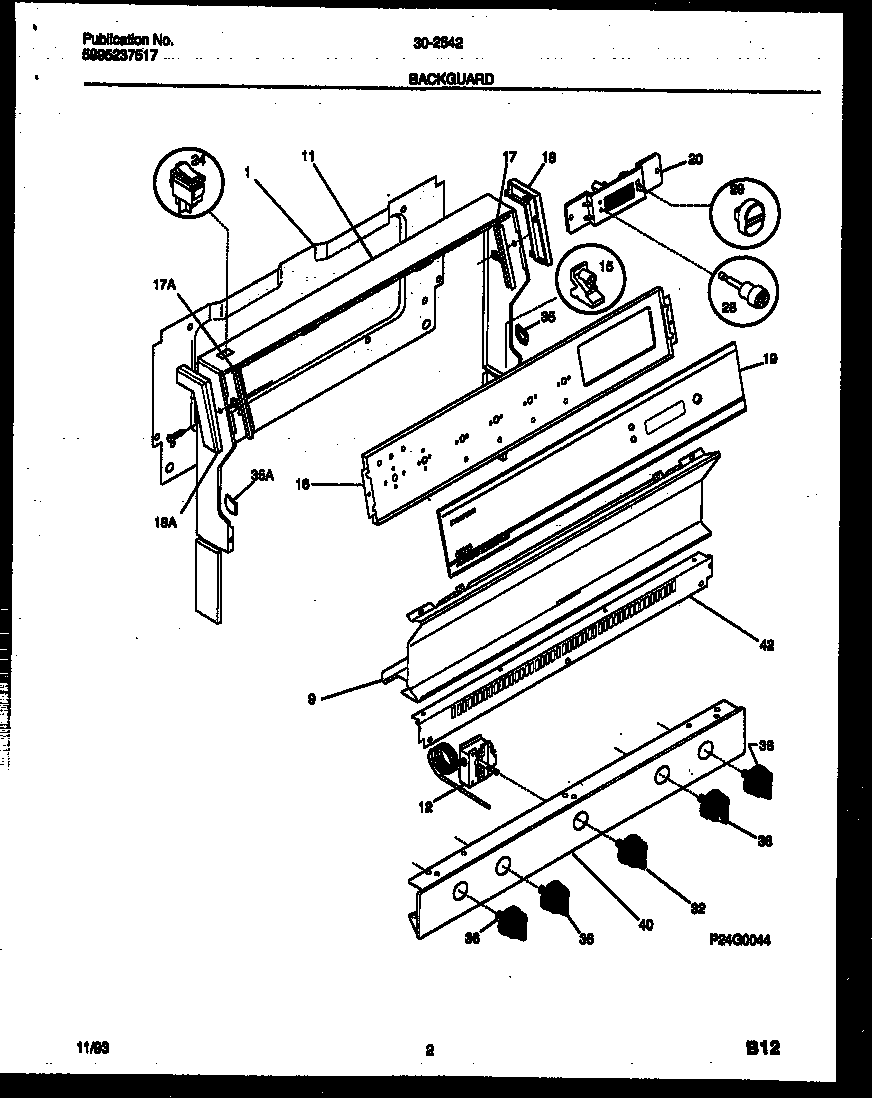

30-2542-00-02 02 – BACKGUARD

Products

Position	Product
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043501
11	WCI 3204764
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17A	TRIM-GLASS RETAINER,LH
17	TRIM-GLASS RETAINER,RH
18	WCI 3204747
18A	WCI 3204746
19	PANEL-CONTROL, GLASS
20	WCI 5303272309
24	5308015487 Frigidaire Switch-Oven Light
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	WCI 3205115
35	CAP-RH
35A	CAP-LH
36	KNOB-TOP VALVE, (4)
40	WCI 5303273109
42	WCI 3131241
