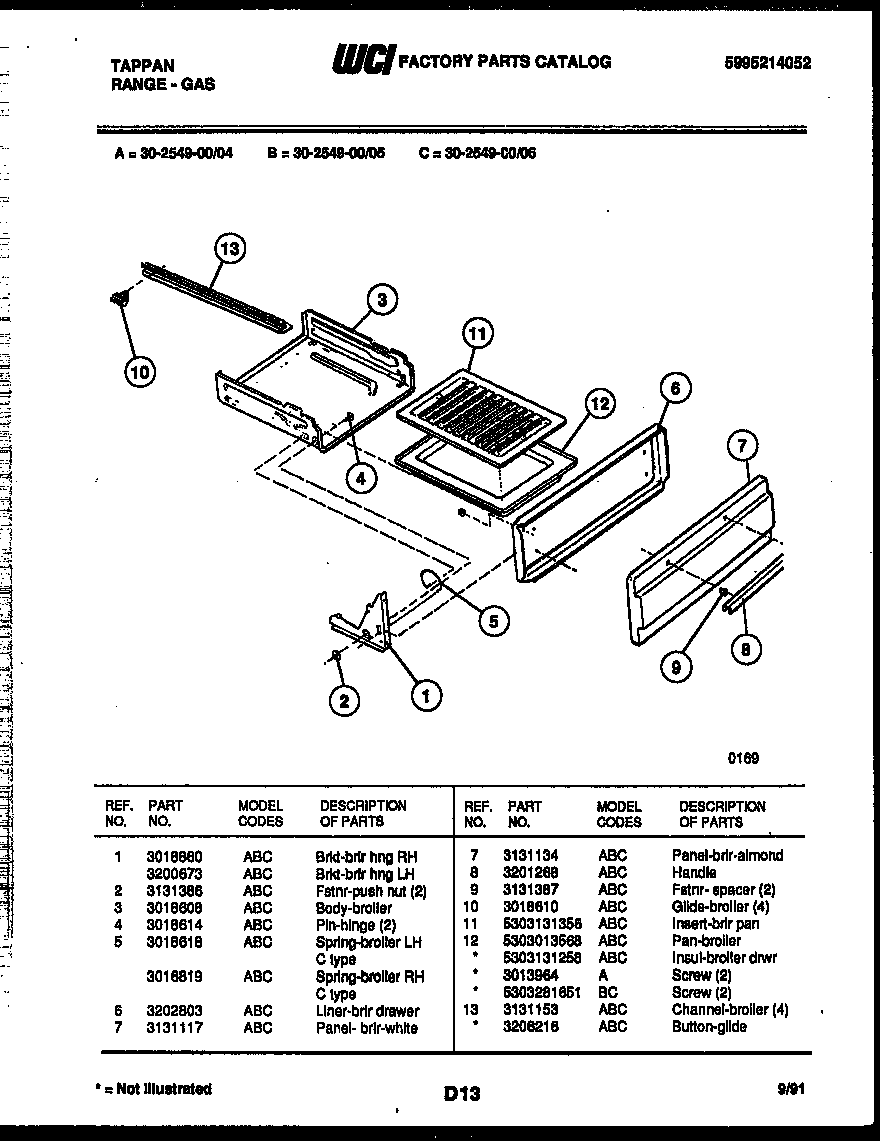

30-2549-00-04 04 – BROILER DRAWER PARTS

Written by

Products

Position	Product
*58627	WCI 3206216
1	WCI 3018860
1A	WCI 3200673
2	WCI 3131386
3	DRAWER-BROILER
4	PIN, HINGE (2)
5A	WCI 3016819
5	WCI 3018618`
6	WCI 3202803
7	PNL-DRAWER (WHTE)
8	HANDLE-DRAWER, BRUSHED CHROME
9	FSTNR, SPACER (2)
10	GLIDE-DRAWER, REAR
11	WCI 5303131356
12	PAN-BROILER
12B	SCREW-PNL ASSY (2)
12A	INSULATION, BROILER DRAWER
13	WCI 3131153
