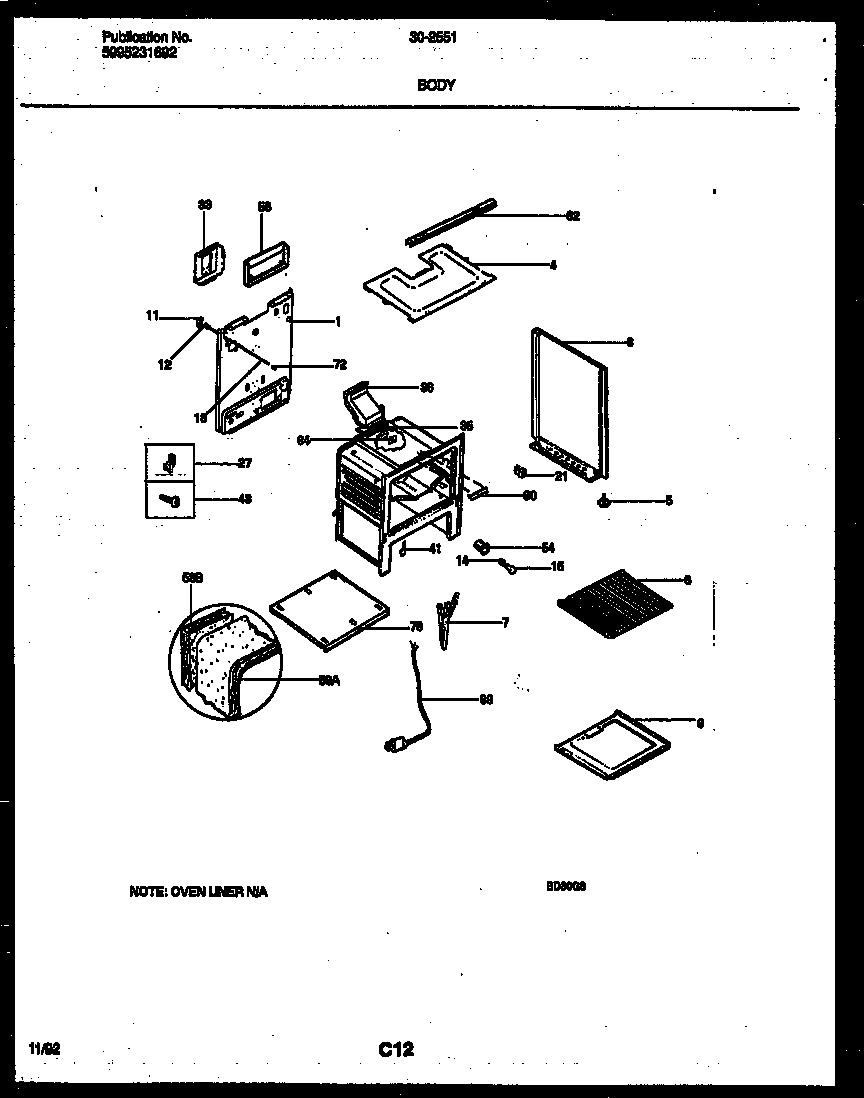

30-2551-00-04 04 – BODY PARTS

Products

Position	Product
*82457	WCI 5303280614
*82457	WCI 08067961
1	WCI 3203082
3	PNL-B/S-RH-WHITE
3A	PNL-B/S-LH-WHITE
4	BURNER BOX BOTTOM
5A	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5	SCREW-LEVELING
5B	ANTI-TIP KIT
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	BTTM-OVEN
8A	316064600 Frigidaire Oven Support
11	WCI 5303131289
12	SWITCH-OVEN LITE DOOR
13	WCI 5303269501
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	CHANNEL-BURNER BOX
33A	WCI 5303291882
33	WCI 3131660
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131904
39A	COVER-POWER CORD, (NON-ILLUSTRATED)
39	5304515659 Frigidaire Oven Power Cord
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
55A	SHIELD-FLUE, (NON-ILLUSTRATED)
55	WCI 5303291880
58A	INSULATION, OVEN WRAPPER
58B	INSUL - OVEN BACK (NON-ILLUSTRATED)
60	COVER-OVEN FRONT
72	COVER-LIGHT/SWITCH ROD
73	BASE-BROIL
