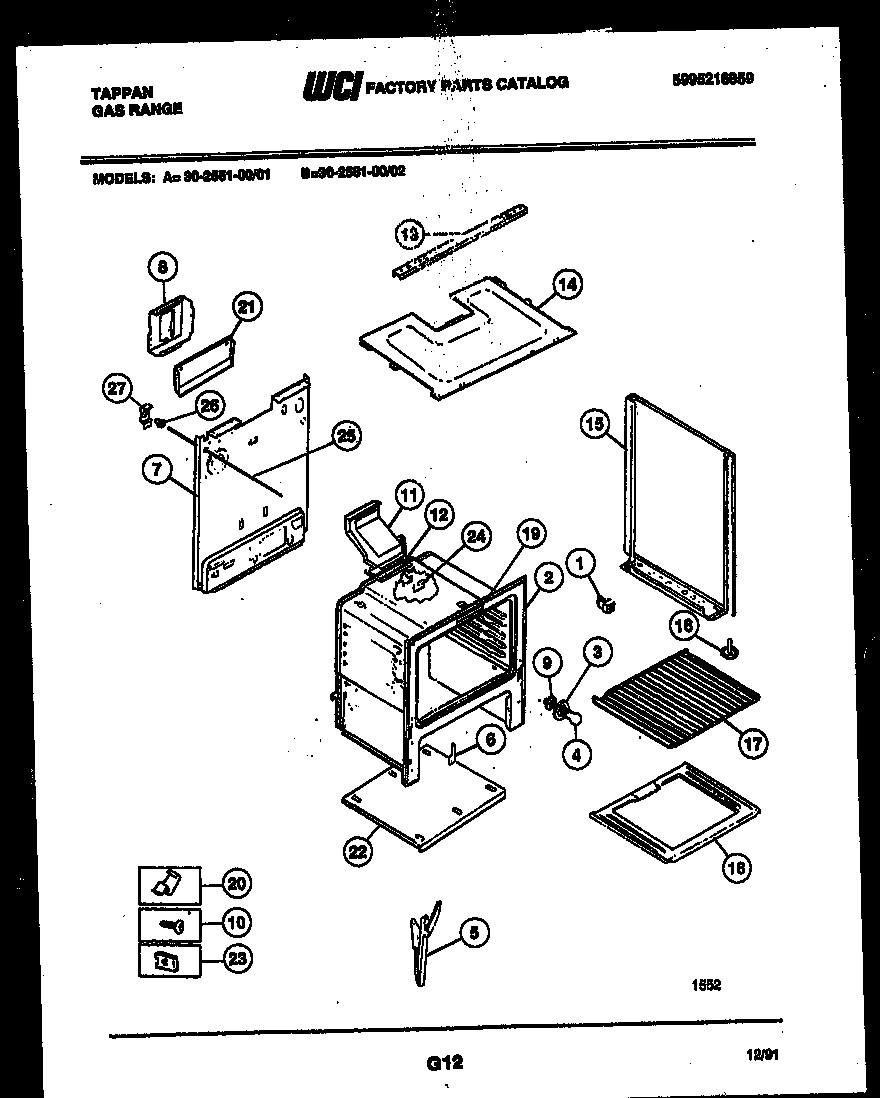

30-2551-23-01 07 – BODY PARTS

30-2551-23-01 07 – BODY PARTS

Written by

in

30-2551-23-01 07 – BODY PARTS

Products

PositionProduct
*61541WCI 19100200032
*61541SHIELD-FLUE, (NON-ILLUSTRATED)
*61541WCI 08010570
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5WCI 316007002
6WCI 3131570
6A5304515659 Frigidaire Oven Power Cord
7WCI 3203082
8WCI 3131660
9WCI 5303271606
10316282700 Frigidaire Oven Screw
11WCI 3131904
12316542102 Frigidaire Flue Gasket
13CHANNEL-BURNER BOX
14BURNER BOX BOTTOM
15AWCI 5303269545
15WCI 5303269543
16SCREW-LEVELING
17316067902 Frigidaire Oven Rack
18BINSUL – OVEN BACK (NON-ILLUSTRATED)
18AINSULATION, OVEN WRAPPER
18BTTM-OVEN
19COVER-OVEN FRONT
19AWCI 08067961
20316539800 Frigidaire Oven Retainer
21WCI 5303280614
21A316064600 Frigidaire Oven Support
22BCOVER-POWER CORD, (NON-ILLUSTRATED)
22AANTI-TIP KIT
22BASE-BROIL
233203010 Frigidaire Clip
24COVER-IGNITOR
25WCI 5303209316
26SWITCH-OVEN LITE DOOR
27WCI 5303131289
