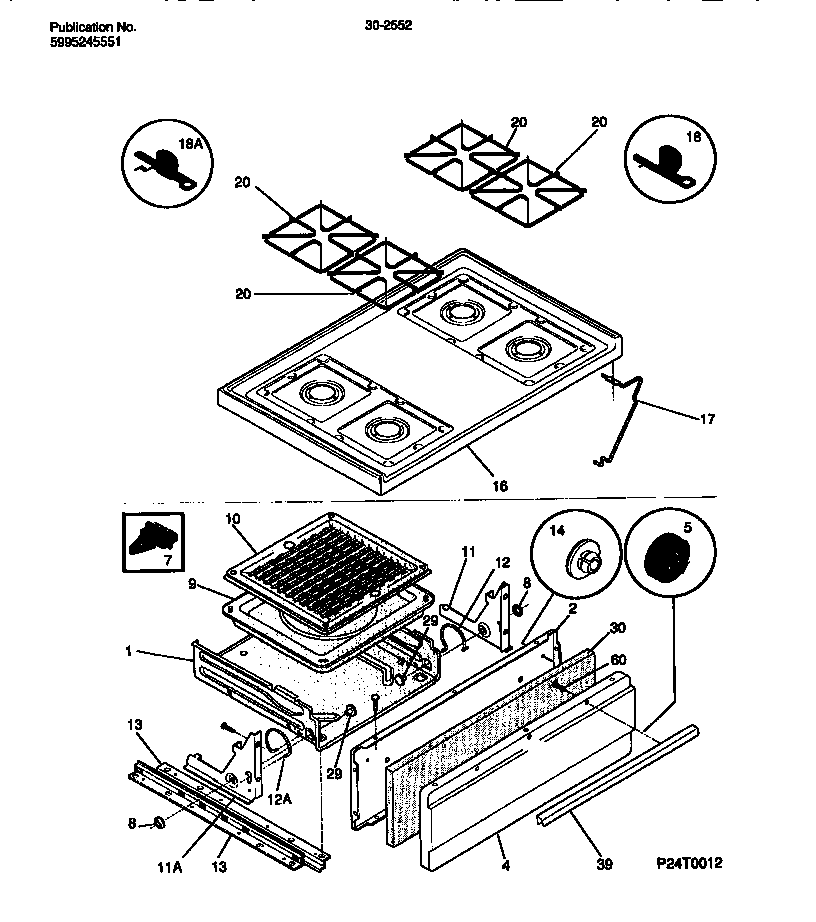

30-2552-00-02 05 – TOP/DRAWER

Products

Position	Product
*74801	WCI 5303281584
1	DRAWER-BROILER
2	WCI 3202803
4	PNL-DRAWER (WHTE)
5	FSTNR, SPACER (2)
7	GLIDE-DRAWER, REAR
8	WCI 3131386
9	PAN-BROILER
10	WCI 530131356
11A	WCI 5303281620
11	WCI 5303281621
12	SPRING-BROILER, RH
12A	WCI 3018618`
13	WCI 3131153
14	WCI 3206216
16	WCI 5303281618
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP RH
18A	BRACKET-HINGE,MAIN TOP LH
20	WCI 5303272852
29	PIN, HINGE (2)
30	INSULATION, BROILER DRAWER
39	HANDLE-DRAWER, BRUSHED CHROME
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
