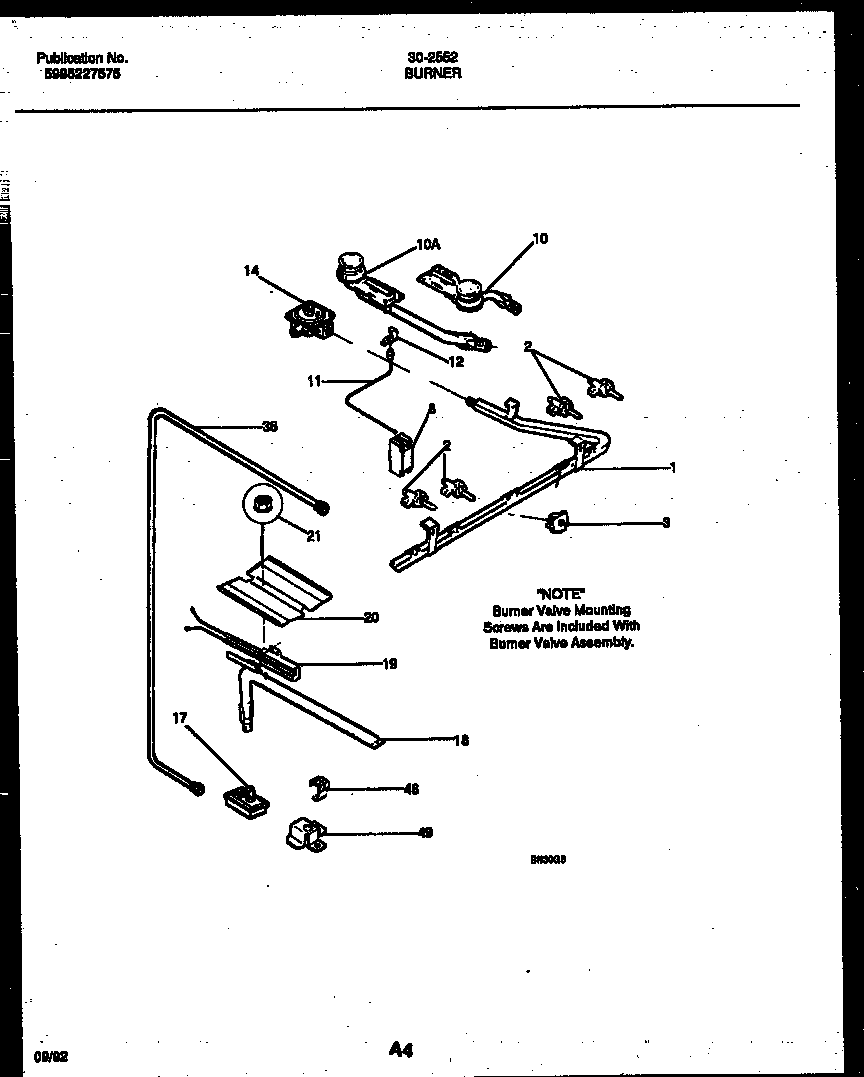

30-2552-23-01 03 – BURNER PARTS

Products

PositionProduct
1WCI 5303272435
2VALVE-TOP BURNER, 2 POSITION, (4), W/SCREWS
3WCI 316032001
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
105304506427 Frigidaire Oven Range Surface Burner (White)
10A5304506426 Frigidaire Oven Top Rear Burner
11IGNITER-TOP BURNER, BASE, (2)
123016993 Frigidaire Oven Retainer
14CONTROL - REGUL
173203459 Frigidaire Oven Range Dual Gas Safety Valve
18WCI 3131439
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 3203265
215303013272 Frigidaire Oven Nut
36WCI 3203458
48WCI 3018603
49BRKT.-VALVE
