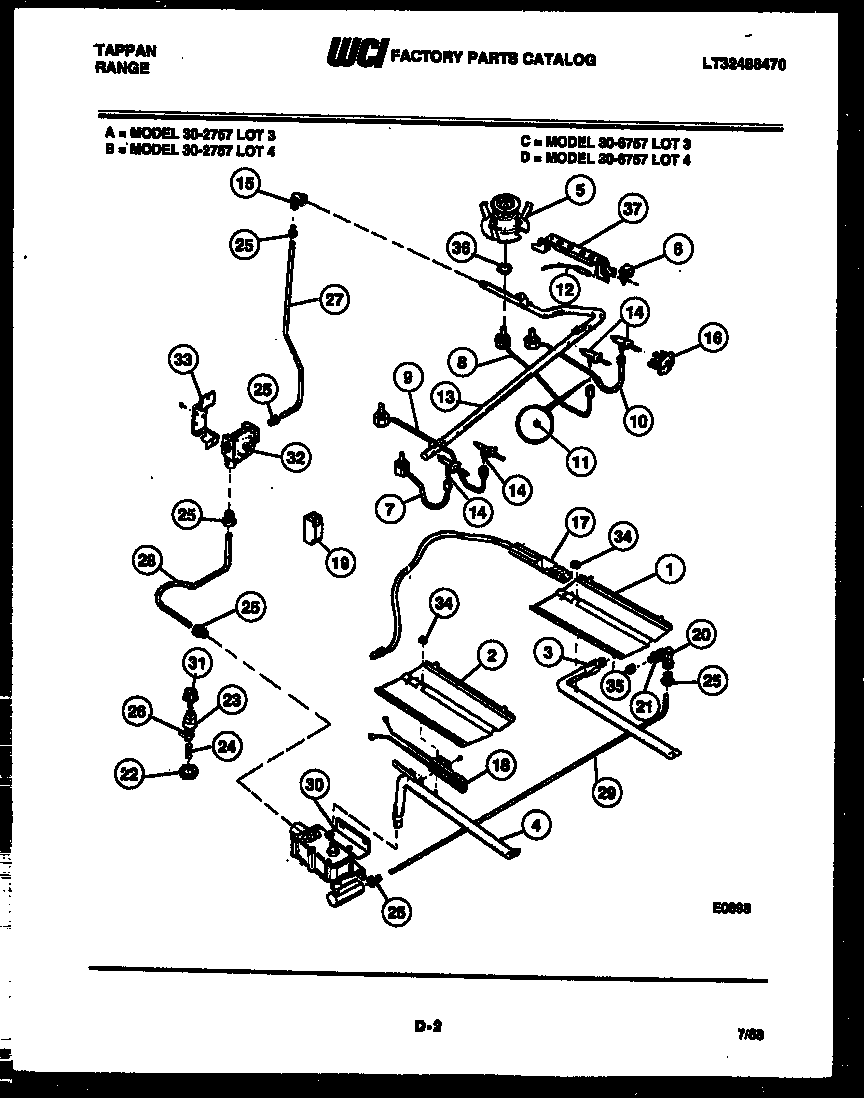

30-2757-00-04 05 – BURNER, MANIFOLD AND GAS CONTROL

30-2757-00-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-2757-00-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*16513WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5WCI 079T032S02
6RETAINER IGNITER
7WCI 079T033H01
8WCI 079T033H02
9WCI 079T033H03
10WCI 079T033H04
11WCI 247T074P01
12IGNITER-TOP BURNR (4)
13MANIFOLD, PIPE
14WCI 774T135P01
15ANUT COMPRESSN (4)
15ELBOW 1/2 NP TO 9/16-24
16SWITCH-IGNITER (4)
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 455T008P02
21NUT
22NUT FUSE
23SEAL “O“RING
24FUSE, BUSS
25FITTING-LOXIT (8)
26RECEPTICLE FUSE
27TUBE-REGUL TEE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
305303208499 Frigidaire Safety Gas Valve
30A5300809968 Frigidaire Dishwasher P-1 Washer
31CAP FUSE
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35SPUD-50
36NUT SPECIAL
36AWCI 3200612
37WCI 072T839F02
