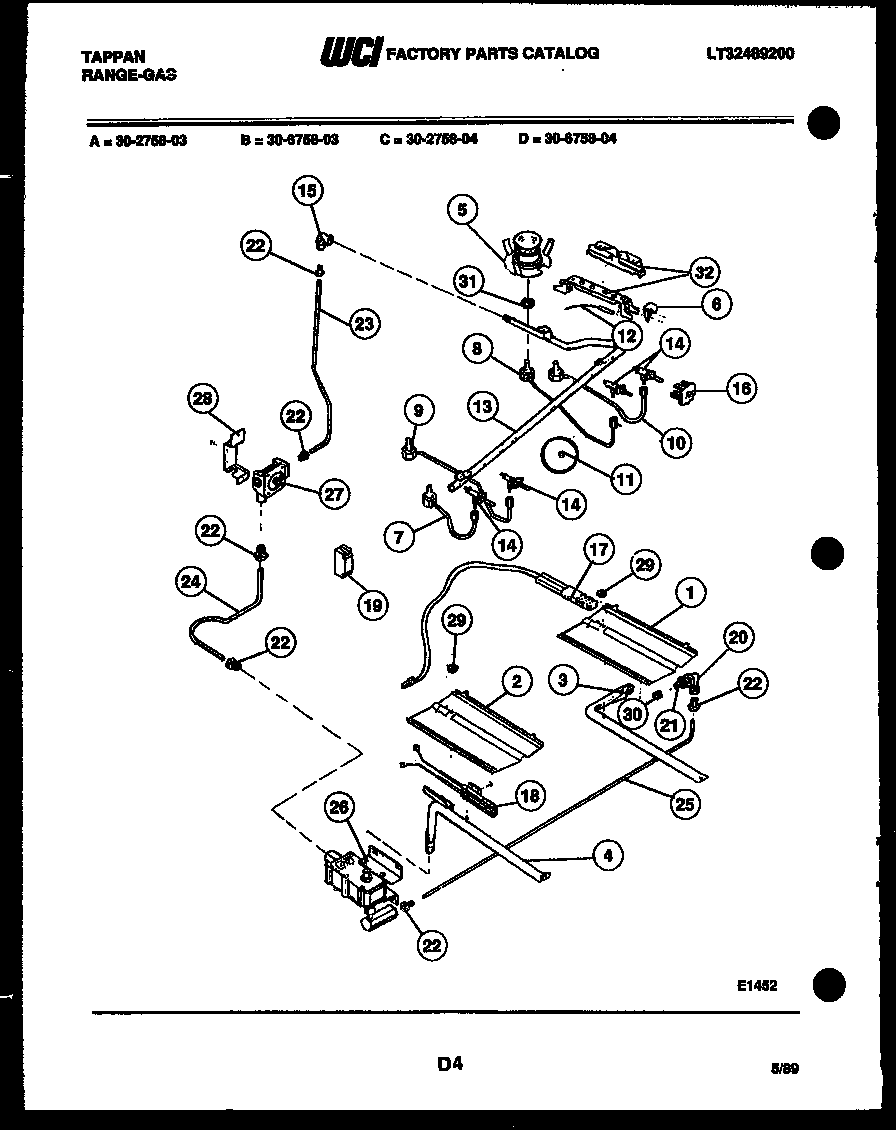

30-2758-23-03 04 – BURNER, MANIFOLD AND GAS CONTROL

30-2758-23-03 04 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-2758-23-03 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*24168WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5WCI 079T032S02
6RETAINER IGNITER
7WCI 079T033H01
8WCI 079T033H02
9WCI 079T033H03
10WCI 079T033H04
11WCI 247T074P01
12IGNITER-TOP BURNR (4)
13AWCI 3017542
13MANIFOLD, PIPE
15ANUT COMPRESSN (4)
15ELBOW 1/2 NP TO 9/16-24
16SWITCH-IGNITER (4)
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 455T088P02
21NUT
22FITTING-LOXIT (8)
23TUBE-REGUL TEE
24TUBE-VALVE TO REGUL
25TUBE-VALVE TO MIXER ELBOW
265303208499 Frigidaire Safety Gas Valve
26A5300809968 Frigidaire Dishwasher P-1 Washer
275303935125 Frigidaire Pressure Regulator
28316091600 Frigidaire Oven Bracket
295303013272 Frigidaire Oven Nut
30SPUD-50
31NUT SPECIAL
32WCI 072T839F02
