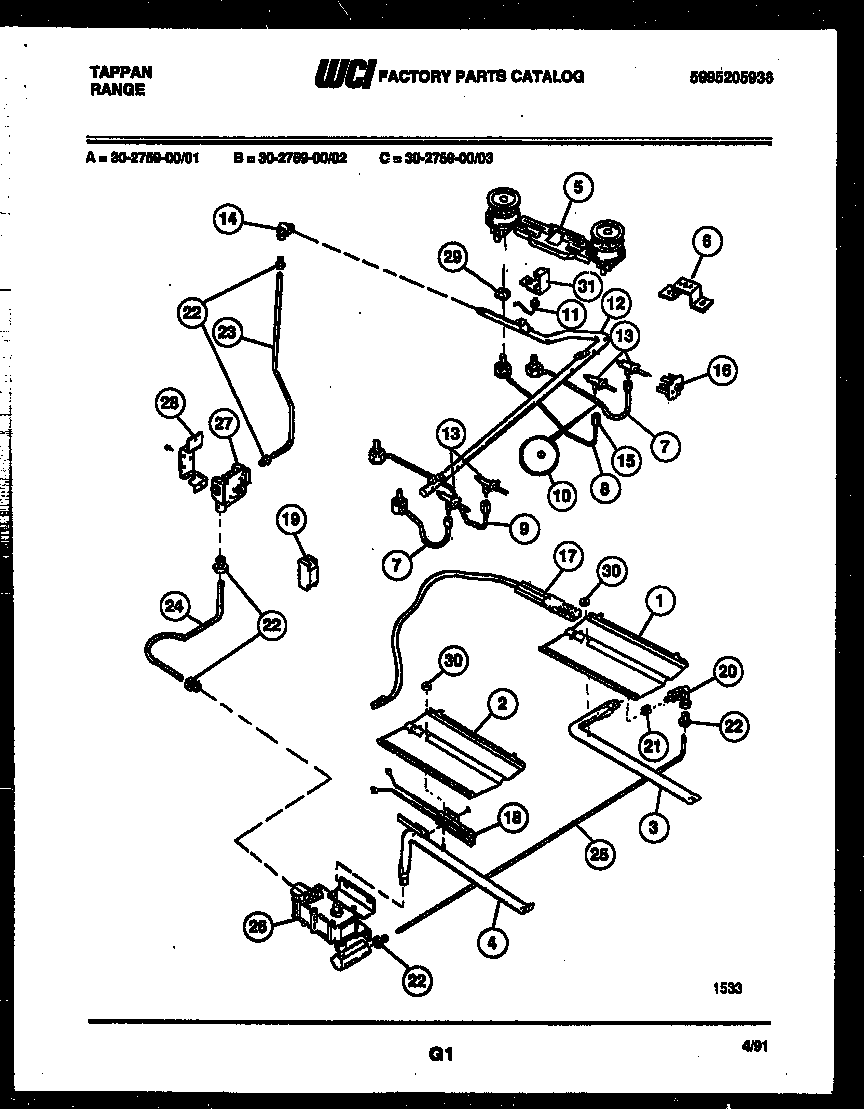

30-2759-00-03 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*33767316048200 Frigidaire Oven Screw
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
6BRACKET BURNER MTG
7BTUBE-BURNER, LF
7ATUBE-BURNER, RF
8TUBE-BURNER, RR
9TUBE-BURNER, LR
11IGNITER-TOP BURNER, BASE, (2)
12WCI 5303271375
13VALVE-TOP 2 POS (4)
16IGN.-SWITCH
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 08067979
22FITTING-LOXIT (8)
23TUBE-ALUM 3/8 REG/MANIFOLD PIPE
24TUBE-VALVE TO REGUL
25TUBE-VALVE TO MIXER ELBOW
265303208499 Frigidaire Safety Gas Valve
275303935125 Frigidaire Pressure Regulator
28316091600 Frigidaire Oven Bracket
29NUT, SPECIAL
30NUT
313016993 Frigidaire Oven Retainer
