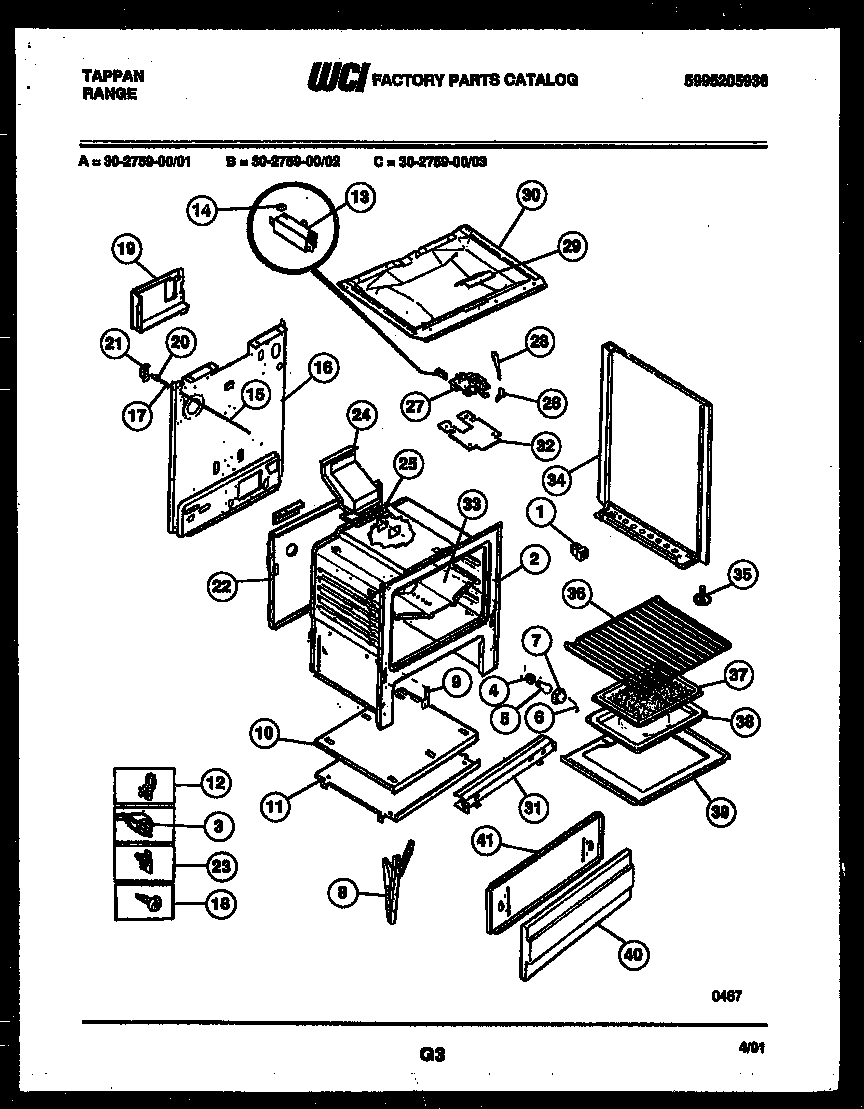

30-2759-00-03 05 – BODY PARTS

30-2759-00-03 05 – BODY PARTS

Written by

in

30-2759-00-03 05 – BODY PARTS

Products

PositionProduct
*33774WCI 3200612
*33774WCI 5303269502
*33774WCI 19100180803
*33773SHIELD-OVN TOP
*33774ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*33774ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
35304515659 Frigidaire Oven Power Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 5303131564
9WCI 3131570
10WCI 5303271048
11AWCI 08067992
11WCI 3131313
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
18316282700 Frigidaire Oven Screw
193131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
34PNL-B/S-LH-WHITE
34APNL-B/S-RH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BINSULATION, OVEN WRAPPER
39DINSULATION OVEN BACK (NON-ILLUSTRATED)
39E08067973 Frigidaire 0 Insulation
39FINSULATION, OVEN TOP
39A316064600 Frigidaire Oven Support
39GWCI 08068018
39BTTM-OVEN
39CWCI 08067961
40ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
40PNL – DRAWER (ALMD)
40PNL – DRAWER (WHITE)
41SHIELD-PNL
