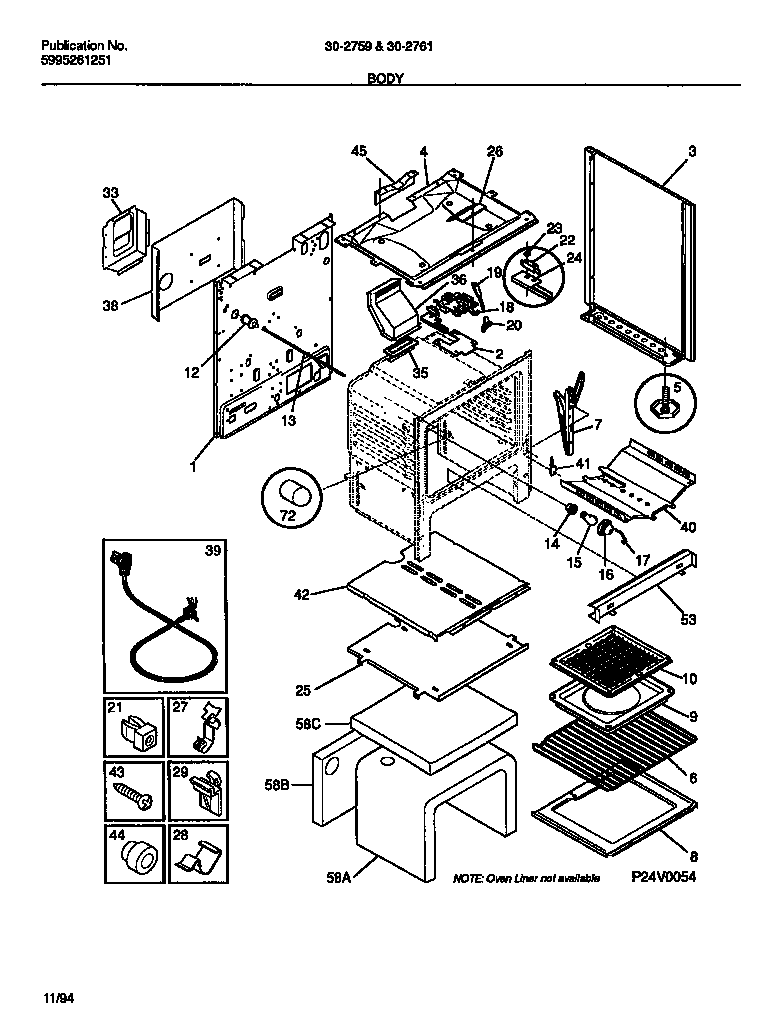

30-2759-00-09 04 – BODY

Products

PositionProduct
*17297WCI 08067961
*172965303321319 Frigidaire Refrigerator White Touch Up Paint
*17298FASTENER-EDGE MTG (NOT ILLUSTRATED)
*17299ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1WCI 316029405
2SHIELD-OVN TOP
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3PNL-B/S-LH-WHITE
3PNL-B/S-RH-WHITE
3WCI 08067992
4WCI 3011597
5316116000 Frigidaire Screw
5SCREW-LEVELING
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5WCI 3934058
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8316064600 Frigidaire Oven Support
8BTTM-OVEN
9PAN-BROILER
10WCI 5303131356
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18SHIELD-LATCH (NON-ILLUSTRATED)
18WCI 5303015453
19WCI 5303131357
20WCI 3203218
20WCI 08013188
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22STUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39AHARNESS-WIRING, MAIN
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53SHIELD-FRONT
5308067973 Frigidaire 0 Insulation
58CINSULATION, OVEN TOP
58BWCI 316054200
58AINSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
