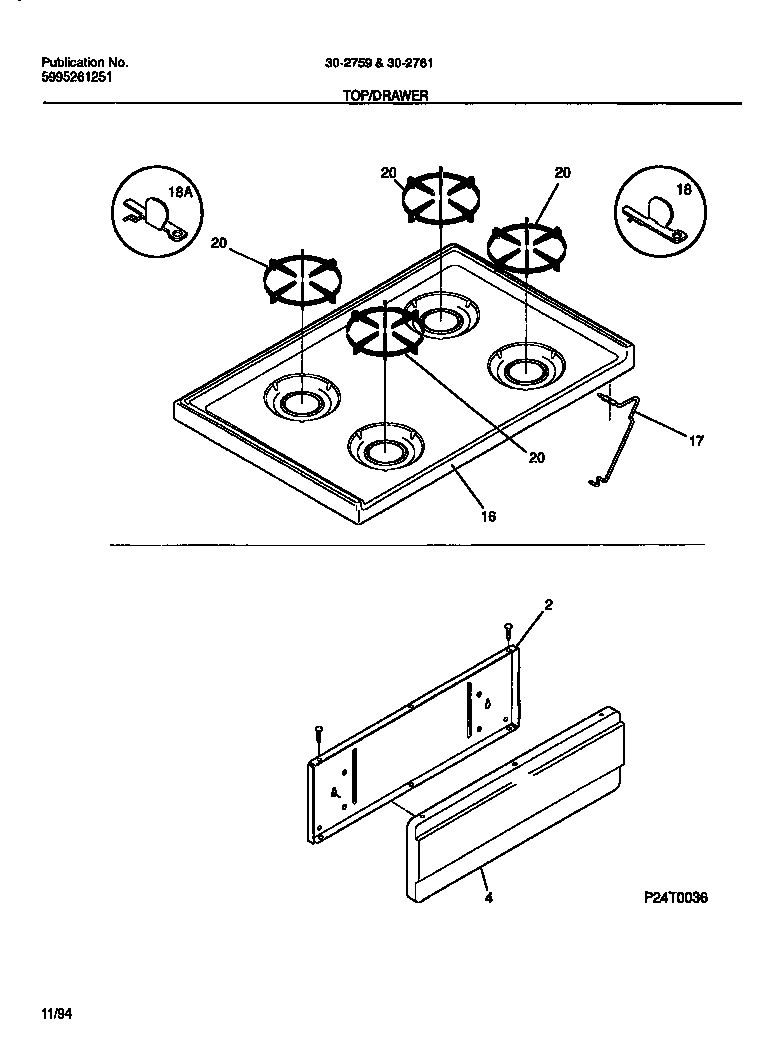

30-2759-00-09 06 – TOP/DRAWER

Products

Position	Product
*17287	WCI 5303281584
*17285	ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*17286	WCI 3018702
2	SHIELD-PNL
4	WCI 3200612
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	PNL - DRAWER (WHITE)
16	WCI 3200657
17	WCI 316066900
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
20	316055800 Frigidaire Oven Grate
