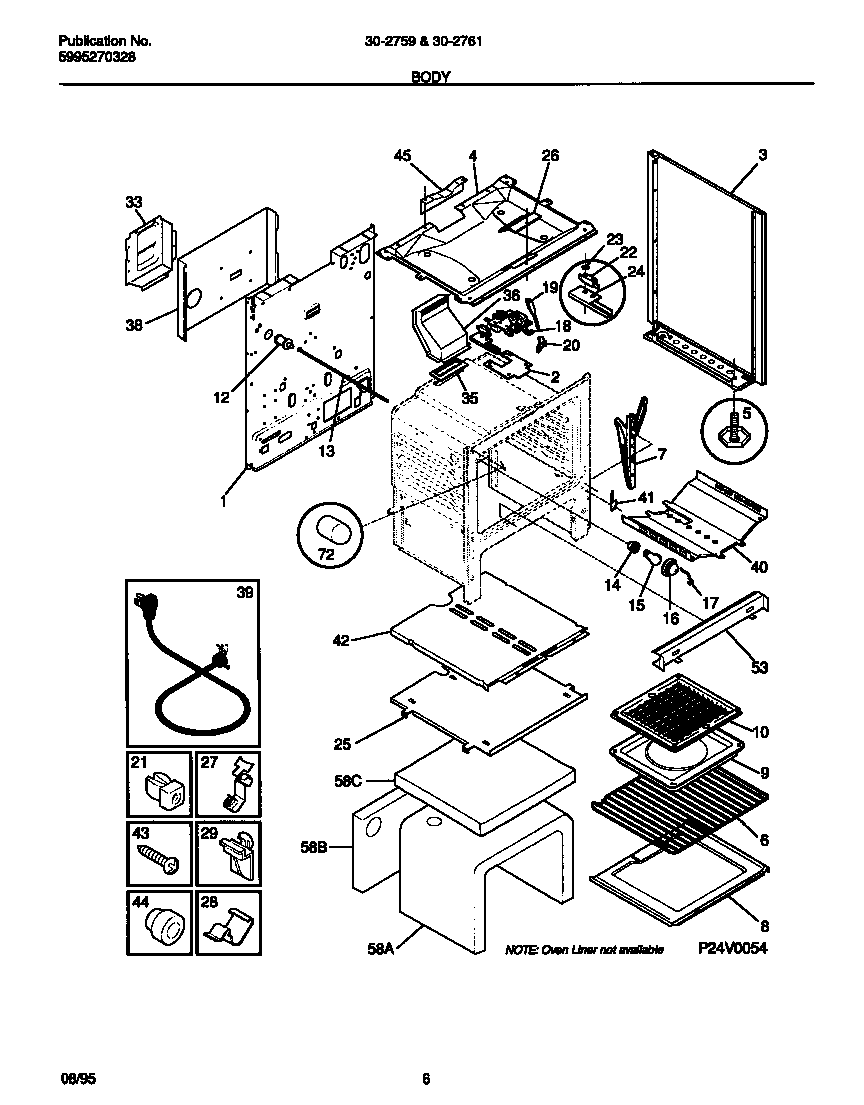

30-2759-00-10 04 – BODY

Products

PositionProduct
*17649HARNESS-WIRING, MAIN
*17647WCI 5303281584
*17648SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
*17646ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1WCI 316029410
2SHIELD-OVN TOP
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CFASTENER-EDGE MTG (NOT ILLUSTRATED)
3AWCI 316081005
3DWCI 08067992
3WCI 316081004
4WCI 3011597
5B316116000 Frigidaire Screw
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5AWCI 3934058
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7A3203010 Frigidaire Clip
7Hinge,oven door ,(2)
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9WCI 316073800
10WCI 3205234
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015453
18ASHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 3203218
20AWCI 08013188
21SPACER-BODYSIDE, (8)
22ASTUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39AWCI 08067961
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
58CINSULATION, OVEN TOP
58BWCI 316054200
58AINSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
