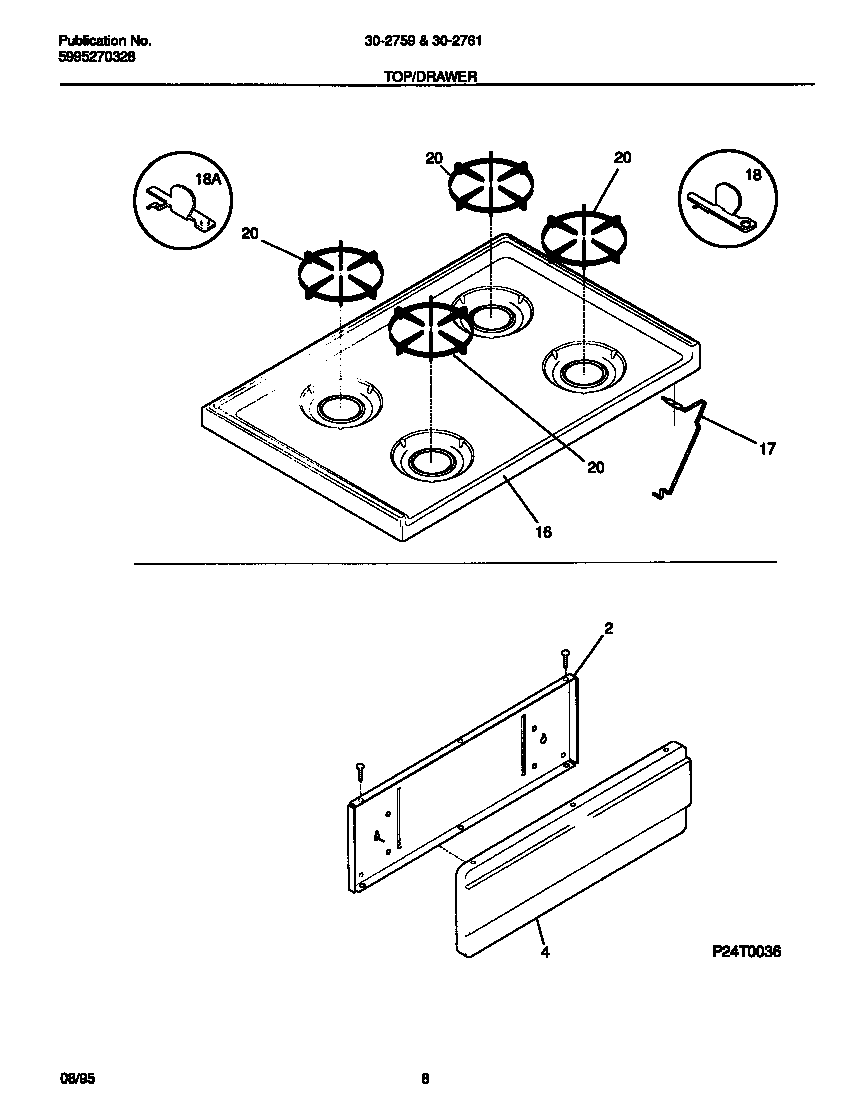

30-2759-00-10 05 – TOP/DRAWER

30-2759-00-10 05 – TOP/DRAWER

Written by

in

30-2759-00-10 05 – TOP/DRAWER

Products

PositionProduct
*17653RIVET-POP, WARING-PLATE
*17654WCI 5303281584
*17651ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
*176503131903 Frigidaire Door/Drawer Bumper
*17652WCI 3018702
2SHIELD-PNL
4BSCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4AWCI 3200612
4PNL – DRAWER (WHITE)
16WCI 3200657
17WCI 316066900
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20316055800 Frigidaire Oven Grate
