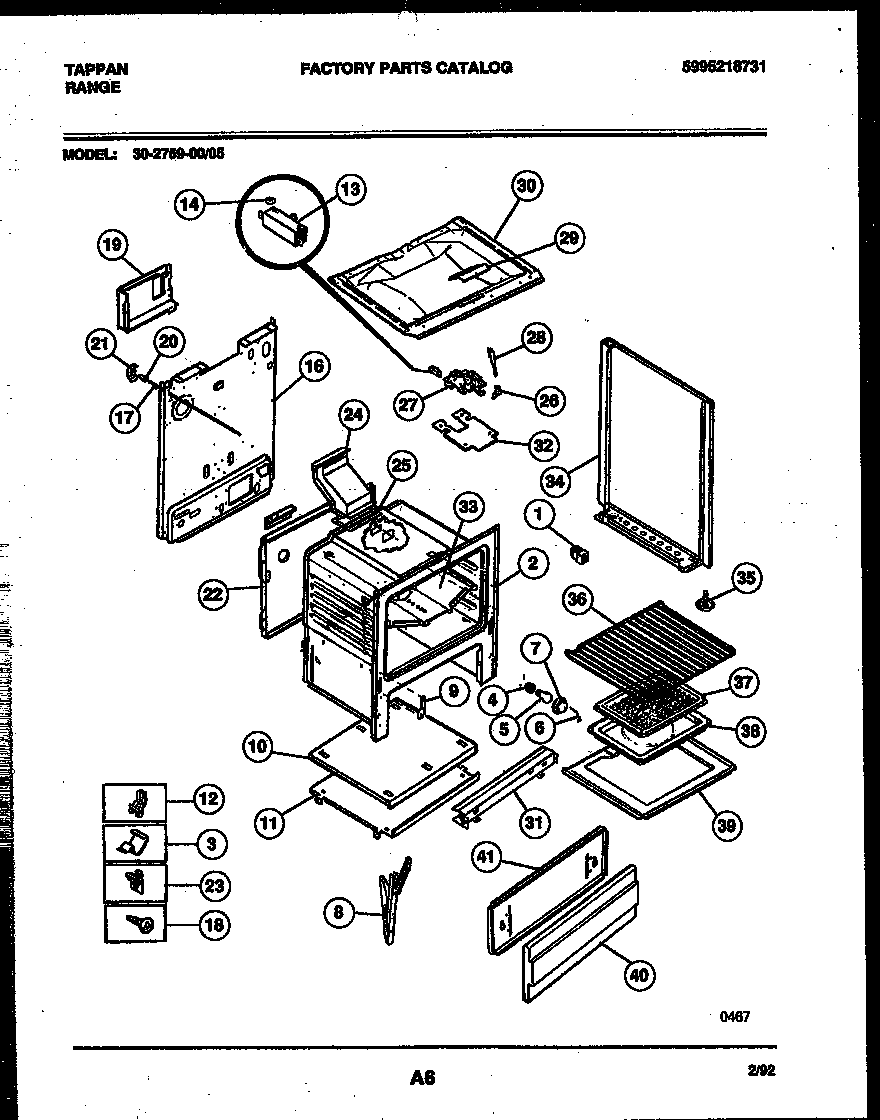

30-2759-23-05 05 – BODY PARTS

30-2759-23-05 05 – BODY PARTS

Written by

in

30-2759-23-05 05 – BODY PARTS

Products

PositionProduct
*65767WCI 19100180305
*65767WCI 3200612
*65767WCI 3131590
*65767WCI 5303269502
*65766SHIELD-OVN TOP
*65767ANTI-TIP KIT (NOT ILLUSTRATED)
*65767ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1SPACER-BODYSIDE, (8)
35304515659 Frigidaire Oven Power Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6RETAINER-GLASS
75304524341 Frigidaire Lens
8Hinge,oven door ,(2)
9WCI 3131570
10WCI 5303271048
11AWCI 08067992
11WCI 3131313
125303284616 Frigidaire Range Bulb Clip Thermostat
13SWITCH-LATCH
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
16WCI 3203082
17WCI 5303209316
18316282700 Frigidaire Oven Screw
193131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25BWCI 08013188
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
34WCI 5303269545
34AWCI 5303269543
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BTTM-OVEN
39DINSULATION OVEN BACK (NON-ILLUSTRATED)
39GWCI 08068018
39E08067973 Frigidaire 0 Insulation
39FINSULATION, OVEN TOP
39A316064600 Frigidaire Oven Support
39CWCI 08067961
39BINSULATION, OVEN WRAPPER
40ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
40PNL – DRAWER (ALMD)
41SHIELD-PNL
