30-2761-00-01 05 – BODY PARTS

30-2761-00-01 05 – BODY PARTS

Written by

in

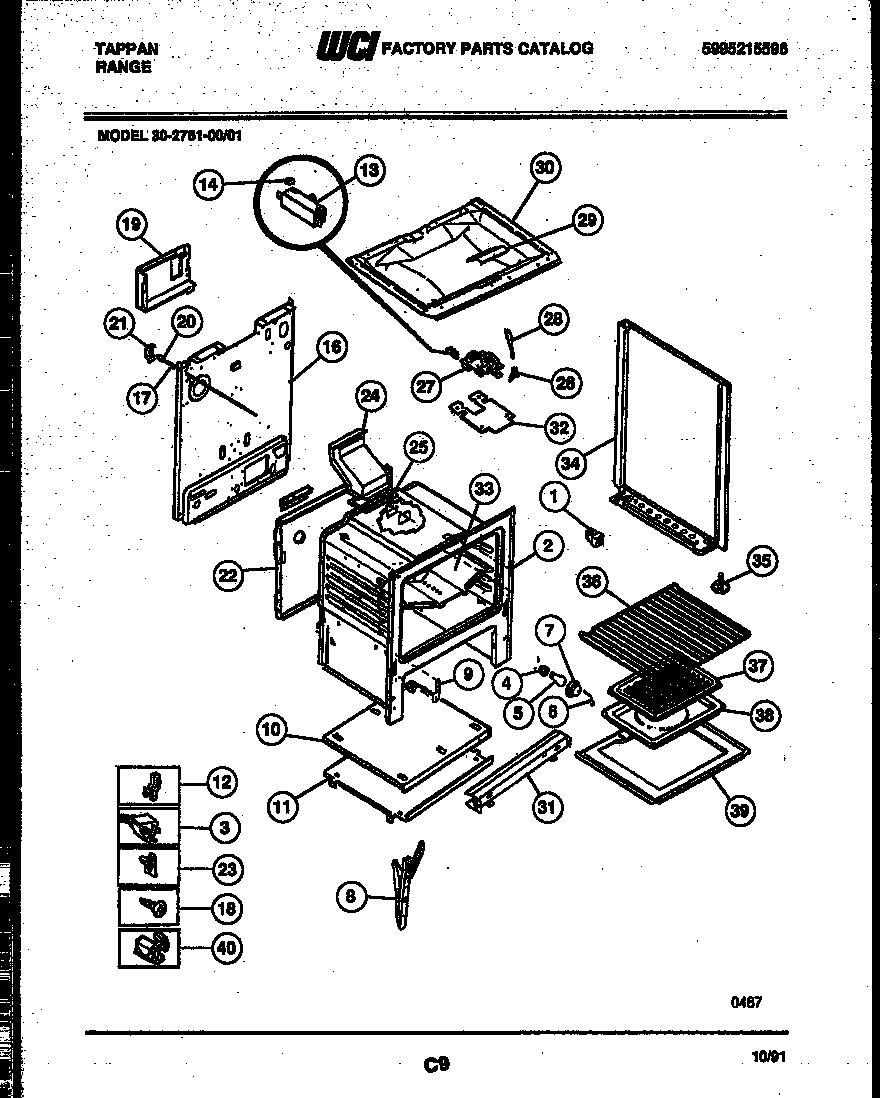

30-2761-00-01 05 – BODY PARTS

Products

PositionProduct
*63599SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*63600ANTI-TIP KIT (NOT ILLUSTRATED)
*63600WCI 19100180305
*63599SHIELD-OVN TOP
*63599WCI 5303269502
1SPACER-BODYSIDE, (8)
35304515659 Frigidaire Oven Power Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8CHAN-DOOR HINGE (2)
9WCI 3131570
10WCI 5303271048
11WCI 3131313
11AWCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
18316282700 Frigidaire Oven Screw
193131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25BWCI 08013188
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
34PNL-B/S-LH-WHITE
34APNL-B/S-RH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39A316064600 Frigidaire Oven Support
39BINSULATION, OVEN WRAPPER
39CWCI 08067961
39E08067973 Frigidaire 0 Insulation
39BTTM-OVEN
39GWCI 08068018
39DINSULATION OVEN BACK (NON-ILLUSTRATED)
39FINSULATION, OVEN TOP
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
