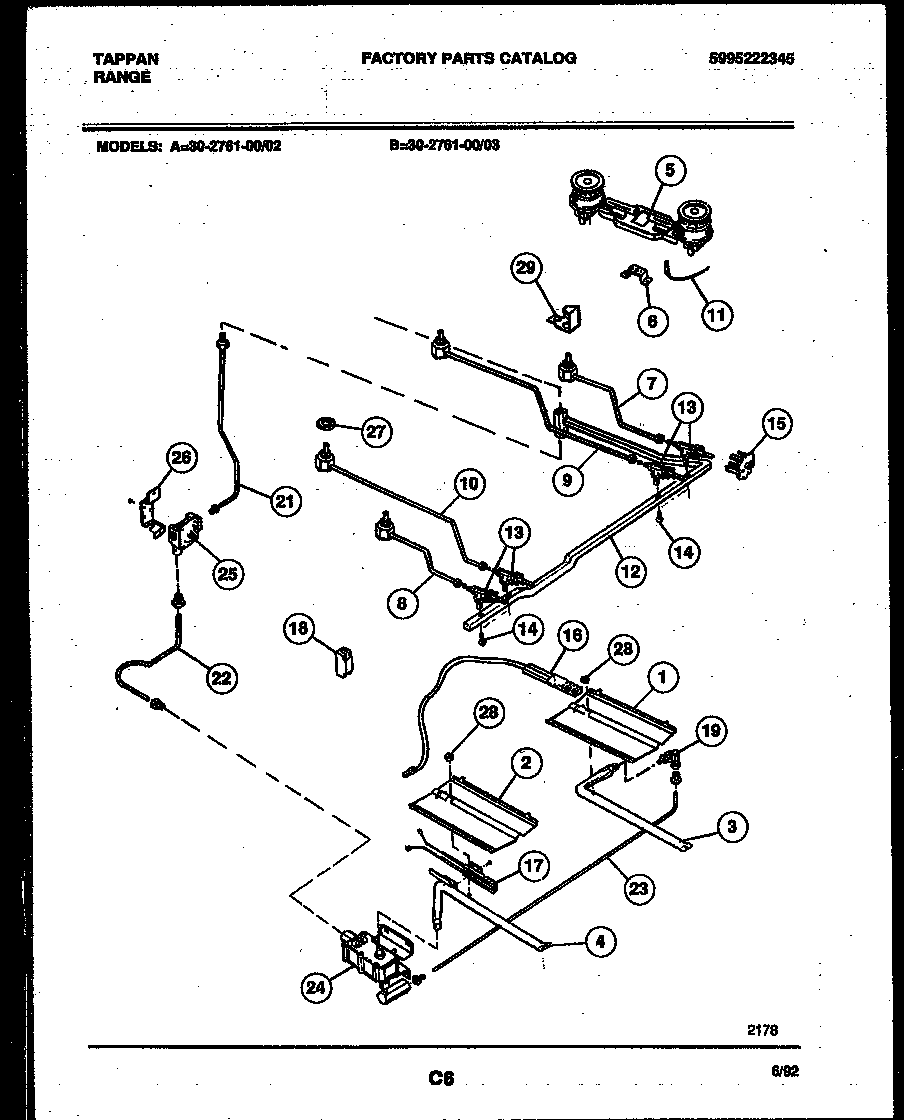

30-2761-00-02 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER-TOP-DOUBLE
6	BRACKET BURNER MTG
7	WCI 5303283665
8	WCI 5303283666
9	WCI 5303283667
10	WCI 5303283668
11	IGNITER-TOP BURNER, BASE, (2)
12	WCI 5303271375
13	VALVE-TOP 2 POS (4)
14	316048200 Frigidaire Oven Screw
15	SWITCH-IGNITER (4)
16	5303935068 Frigidaire Flat Igniter
17	5303935066 Frigidaire Oven Flat Igniter 17" Leads
18	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19	WCI 5303208640
21	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22	TUBE-VALVE TO REGUL
23	TUBE-VALVE TO MIXER ELBOW
24	5303208499 Frigidaire Safety Gas Valve
25	5303935125 Frigidaire Pressure Regulator
26	316091600 Frigidaire Oven Bracket
27	NUT, SPECIAL
28	5303013272 Frigidaire Oven Nut
29	3016993 Frigidaire Oven Retainer
