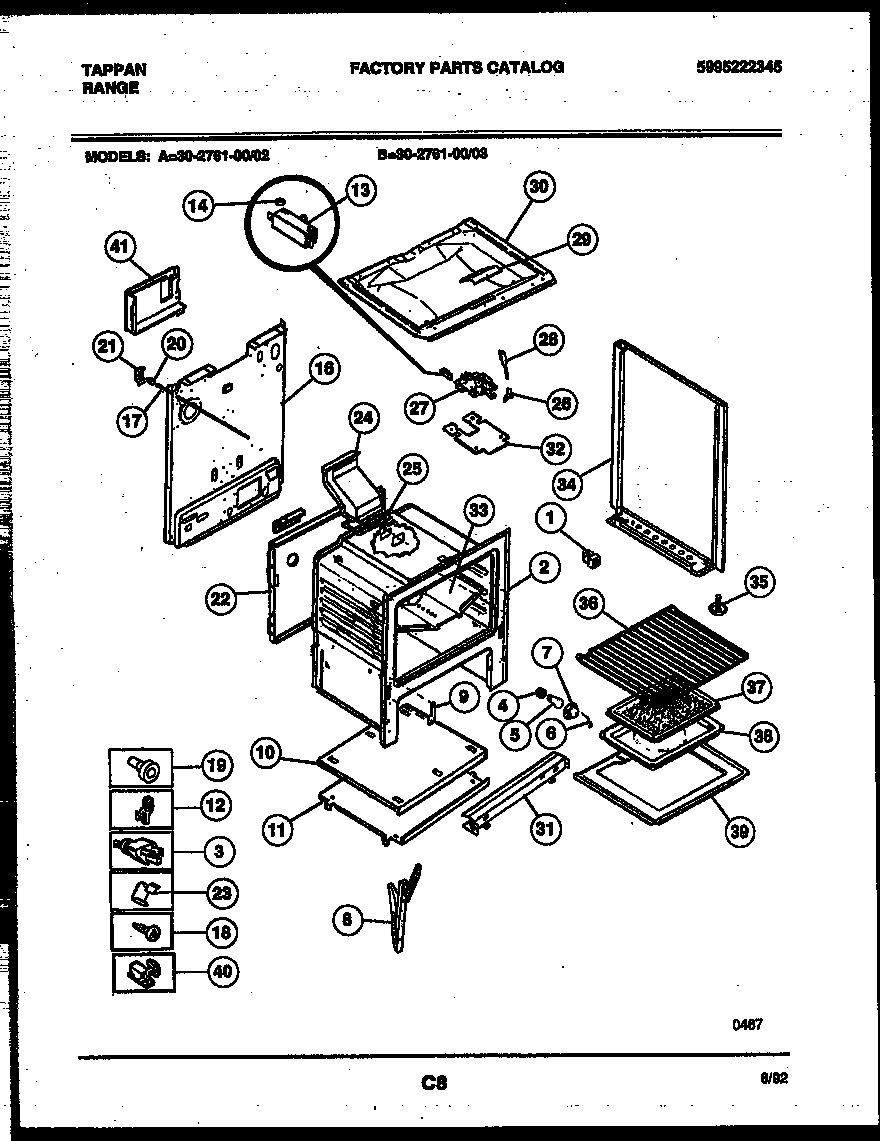

30-2761-00-02 05 – BODY PARTS

Products

Position	Product
*73281	WCI 19100180305
*73281	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	5304515659 Frigidaire Oven Power Cord
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	RETAINER-GLASS
7	5304524341 Frigidaire Lens
8	Hinge,oven door ,(2)
9	WCI 3131570
10	WCI 5303271048
11	WCI 3131313
11A	WCI 08067992
12	5303284616 Frigidaire Range Bulb Clip Thermostat
13	WCI 3131672
14	FSTNR-PUSH ON
14A	STUD SPACER (2) (NON-ILLUSTRATED)
16	WCI 3203082
17	WCI 5303209316
18	316282700 Frigidaire Oven Screw
19	3131903 Frigidaire Door/Drawer Bumper
20	SWITCH-OVEN LITE DOOR
21	BRKT LIGHT SWITCH
22	WCI 316014301
23	CLIP-WIRE
24	WCI 3131931
25	316542102 Frigidaire Flue Gasket
25A	SHIELD-LATCH (NON-ILLUSTRATED)
25B	WCI 08013188
26	WCI 3203218
27	WCI 5303015453
28	WCI 5303131357
29	WCI 08067757
30	WCI 3011597
31	SHIELD-FRONT
32	SHIELD-LATCH
33	WCI 3200836
34	PNL-B/S-LH-WHITE
34A	PNL-B/S-RH-WHITE
35	SCREW-LEVELING
36	316067902 Frigidaire Oven Rack
37	WCI 5303131356
38	PAN-BROILER
39C	WCI 08067961
39B	316064600 Frigidaire Oven Support
39D	INSULATION OVEN BACK (NON-ILLUSTRATED)
39F	INSULATION, OVEN TOP
39B	INSULATION, OVEN WRAPPER
39G	WCI 08068018
39E	08067973 Frigidaire 0 Insulation
39	BTTM-OVEN
40B	SHIELD-OVN TOP
40	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
40A	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
41	SHIELD, REAR WALL
