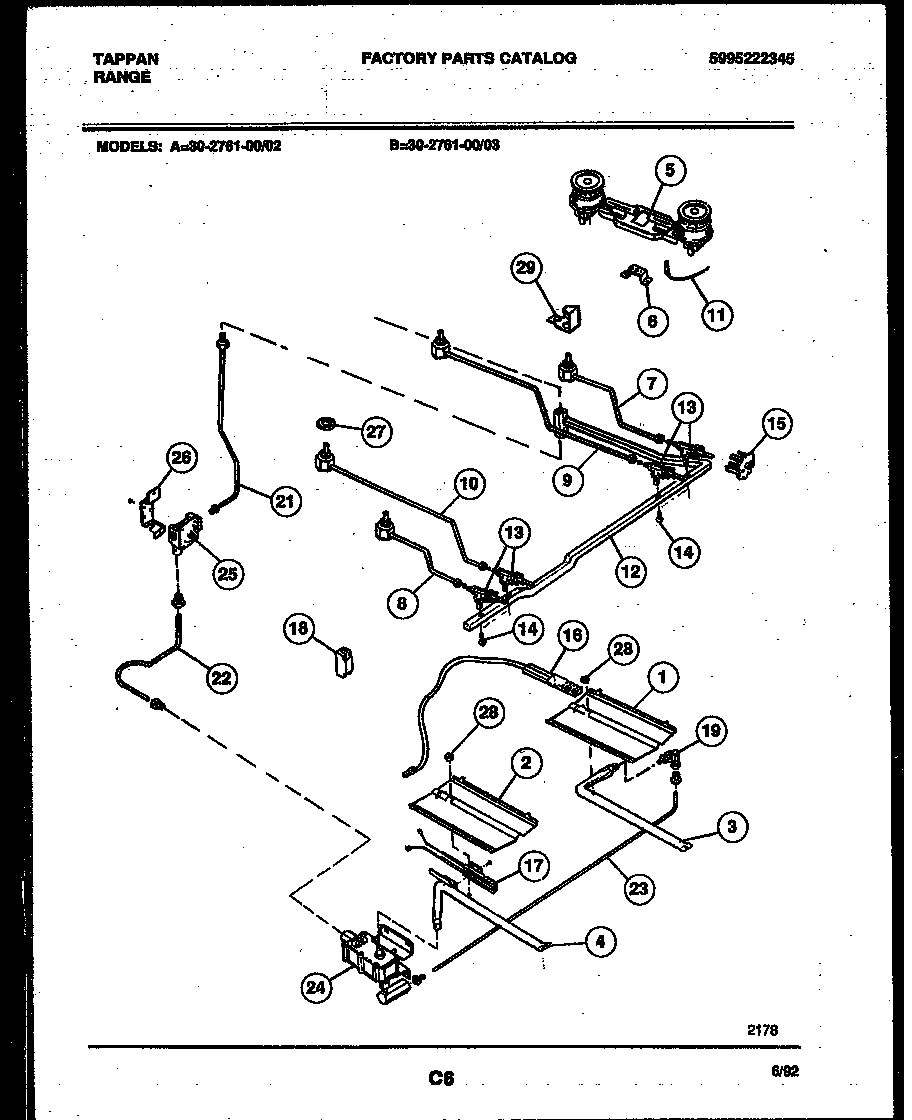

30-2761-00-03 04 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
6BRACKET BURNER MTG
7WCI 5303283665
8WCI 5303283666
9WCI 5303283667
10WCI 5303283668
11IGNITER-TOP BURNER, BASE, (2)
12WCI 5303271375
13VALVE, TOP, 2 POS, (4)
14316048200 Frigidaire Oven Screw
15WCI 316032001
165303935068 Frigidaire Flat Igniter
175303935066 Frigidaire Oven Flat Igniter 17" Leads
185303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
19WCI 5303208640
21TUBE-ALUM 3/8 REG/MANIFOLD PIPE
22TUBE-VALVE TO REGUL
23TUBE-VALVE TO MIXER ELBOW
245303208499 Frigidaire Safety Gas Valve
255303935125 Frigidaire Pressure Regulator
26316091600 Frigidaire Oven Bracket
27NUT, SPECIAL
285303013272 Frigidaire Oven Nut
293016993 Frigidaire Oven Retainer
