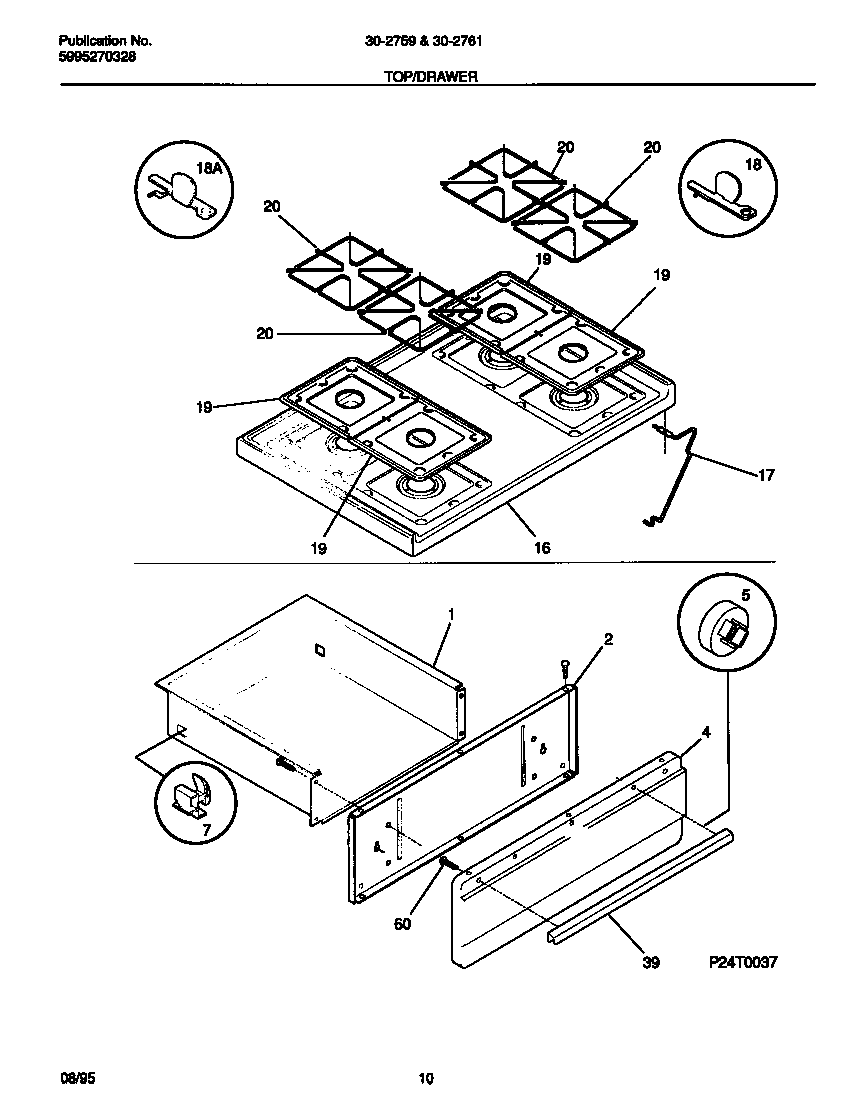

30-2761-00-07 06 – TOP/DRAWER

Products

Position	Product
*17655	3131903 Frigidaire Door/Drawer Bumper
*17656	RIVET-POP, WARING-PLATE
*17657	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL-BROILER, WHITE
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 3131351
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP RH
18A	BRACKET-HINGE,MAIN TOP LH
19	WCI 316011403
20	WCI 5303272852
39	HANDLE
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
