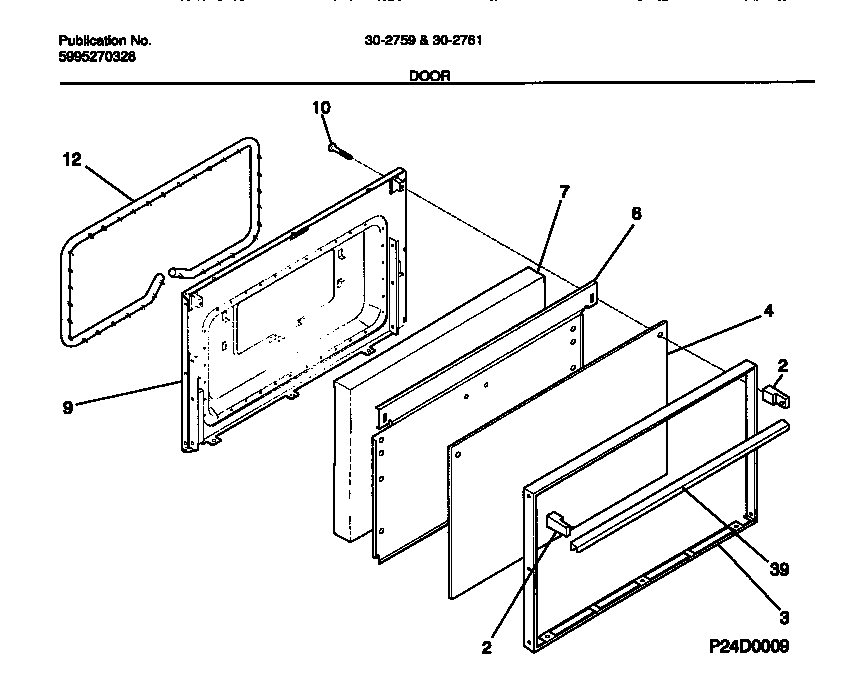

30-2761-00-07 07 – DOOR

30-2761-00-07 07 – DOOR

Written by

in

30-2761-00-07 07 – DOOR

Products

PositionProduct
*17658WCI 316065300
*17659SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*17661WCI 5303269859
*176605303300265 Frigidaire Oven Screw
*176625303285179 Frigidaire Oven Door Screw
3WCI 316067802
4GLASS-FRONT-BLACK
6WCI 5303209317
7WCI 316076400
9WCI 316066602
10SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
125303131601 Frigidaire Oven Seal
39HANDLE-DOOR, OVEN
49316137003 Frigidaire Range / Cooktop End Cap
