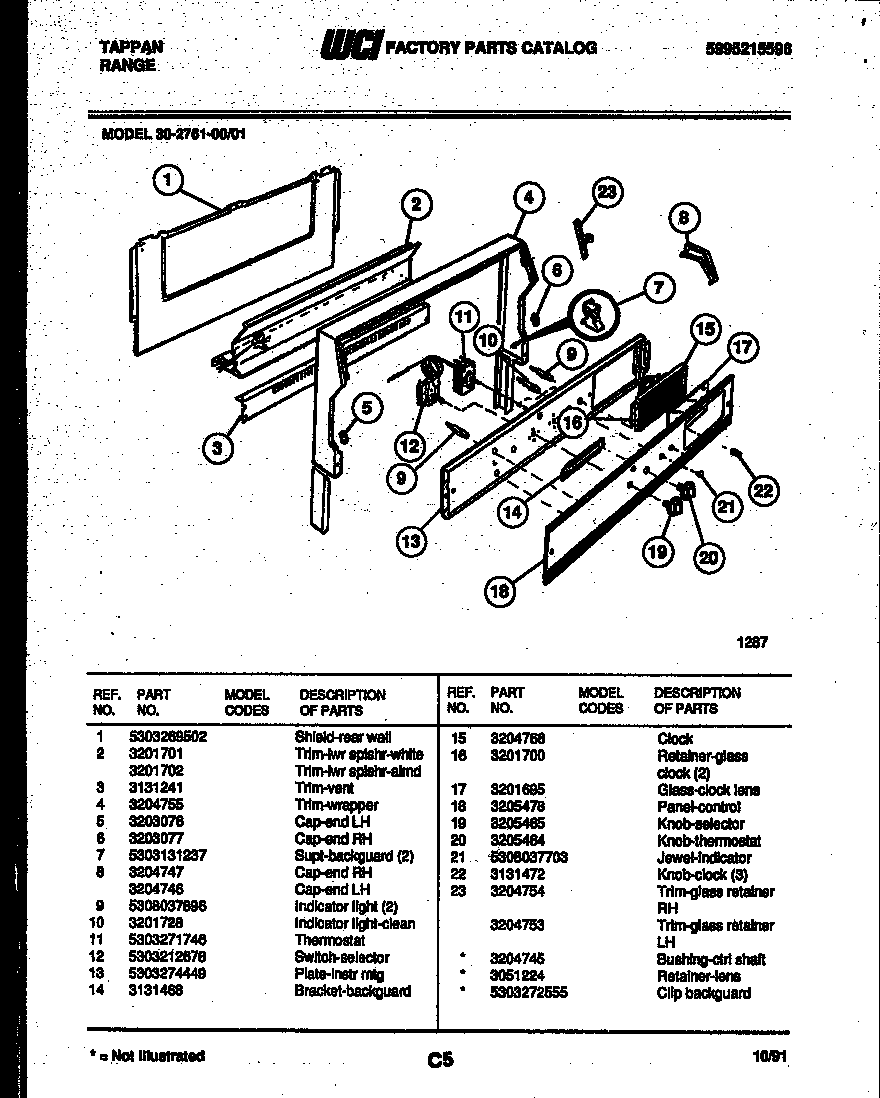

30-2761-23-01 02 – BACKGUARD

30-2761-23-01 02 – BACKGUARD

Written by

in

30-2761-23-01 02 – BACKGUARD

Products

PositionProduct
*63592RETAINER-LENS
*63592WCI 3204745
*63592WCI 5303272555
1WCI 5303269502
2TRIM-LWR SPLSHR (ALMD)
3WCI 3131241
4WCI 3204755
5CAP-LH
6CAP-RH
7SUPPORT-BACKGUARD,(2)
8AWCI 3204746
8WCI 3204747
9WCI 5308037896
10INDICATOR LIGHT-LOCK (1)
11THERMOSTAT-BAKE
12SWITCH SELECTOR 5 POS
13PLATE-INSTRUMENT
14WCI 3131468
15ELECTRICAL CLOCK
16RETAINER, CLOCK GLASS, (2)
17WCI 3201695
18PANEL, CONTROL, METAL
19KNOB-SELECTOR SWITCH
20WCI 3205464
21JEWEL LENS-AMBER
22KNOB-CLOCK
23TRIM-GLASS RETAINER,RH
23ATRIM-GLASS RETAINER,LH
