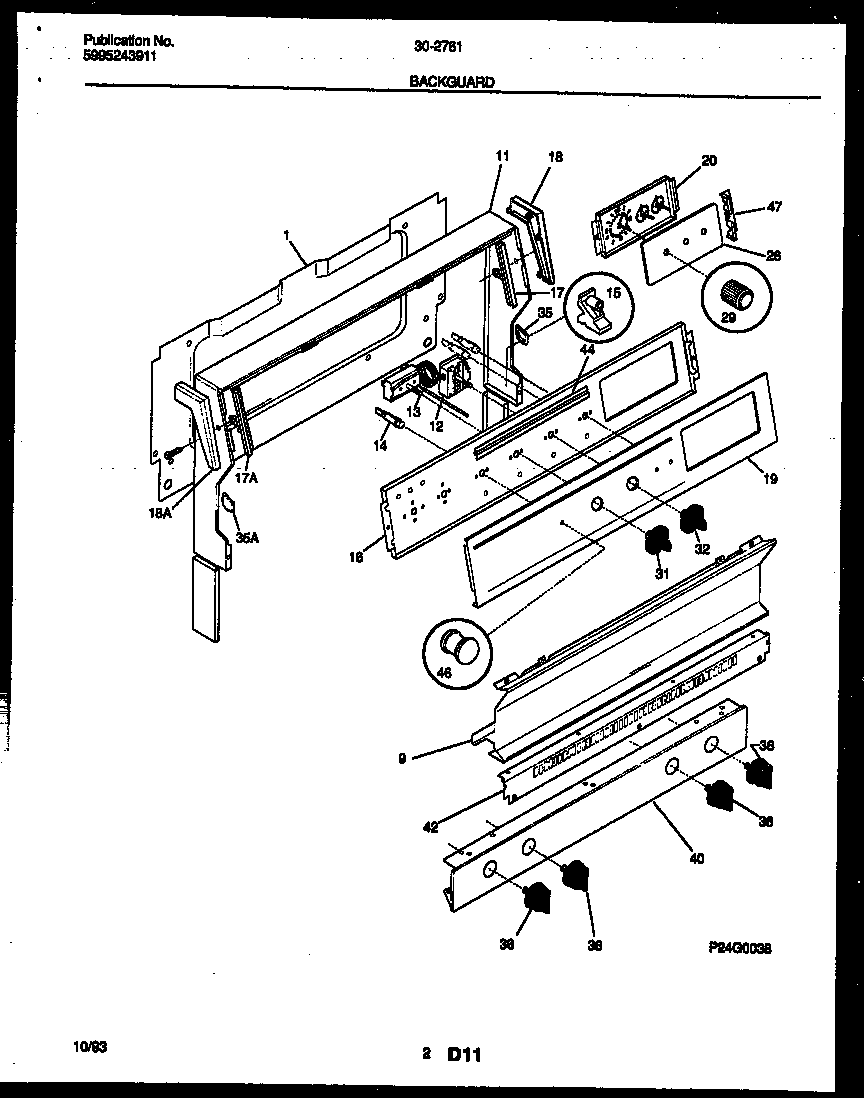

30-2761-23-05 02 – BACKGUARD

30-2761-23-05 02 – BACKGUARD

Written by

in

30-2761-23-05 02 – BACKGUARD

Products

PositionProduct
*90973RETAINER-LENS
*90973WCI 3204745
*90973WCI 5303272555
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043502
11WCI 3204755
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14AINDICATOR LIGHT-LOCK (1)
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,RH
17ATRIM-GLASS RETAINER,LH
18WCI 3204747
18AWCI 3204746
19PANEL, CONTROL, METAL
20ELECTRICAL CLOCK
26WCI 3201695
29KNOB-CLOCK
31WCI 5303286099
32WCI 5303286098
35ACAP-LH
35CAP-RH
36WCI 3205103
40WCI 5303208492
42WCI 3131241
44WCI 3131468
46JEWEL LENS-AMBER
47RETAINER, CLOCK GLASS, (2)
