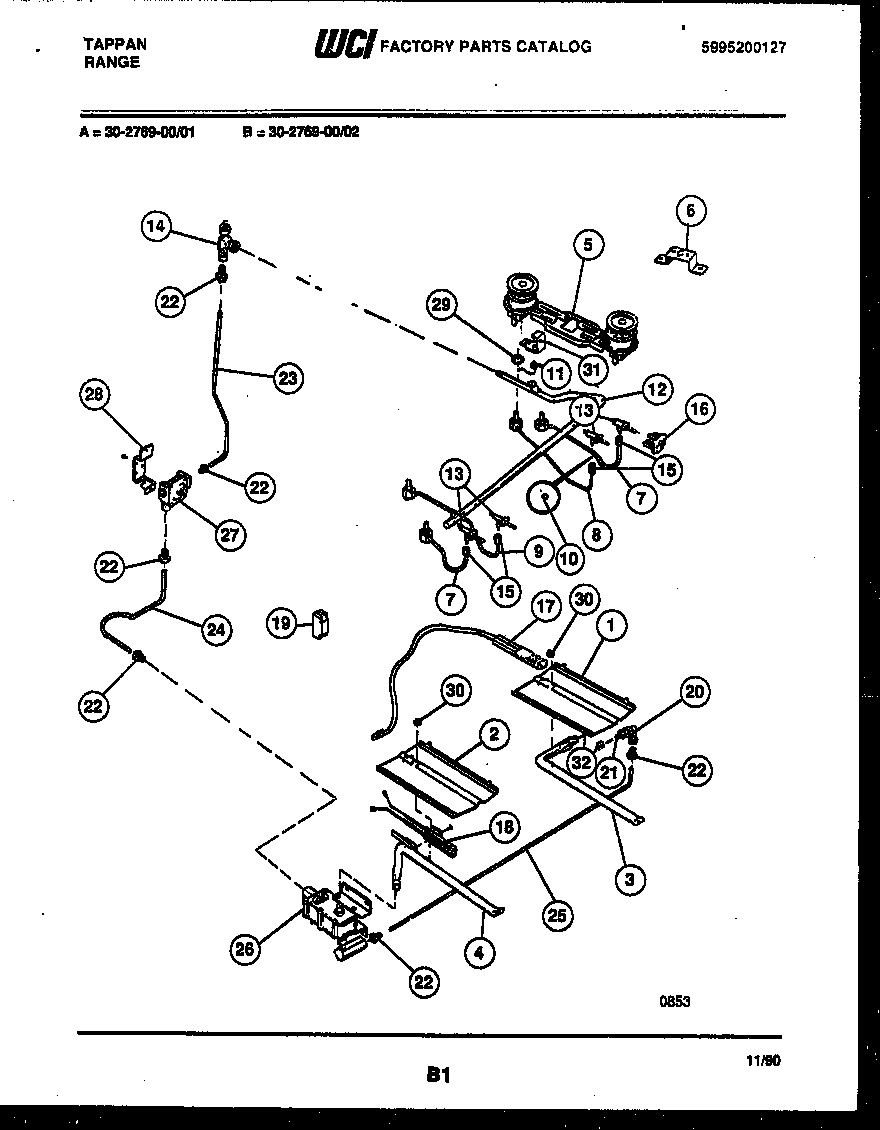

30-2769-00-01 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER-TOP-DOUBLE
6	BRACKET BURNER MTG
7	BURNER TUBE-RF & LF
8	WCI 5303011569
9	WCI 5303011570
10	FERRULE (4)
11	IGNITER-TOP BURNER, BASE, (2)
12	WCI 3018861
13	VALVE 3 POS (4)
14	ELBOW 1/2 NP TO 9/16-24
15	NUT COMPRESSN (4)
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 08067979
21	NUT
22	FITTING-LOXIT (8)
23	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
24	TUBE-VALVE TO REGUL
25	TUBE-VALVE TO MIXER ELBOW
26	5303208499 Frigidaire Safety Gas Valve
27	5303935125 Frigidaire Pressure Regulator
28	316091600 Frigidaire Oven Bracket
29	NUT, SPECIAL
30	5303013272 Frigidaire Oven Nut
31	3016993 Frigidaire Oven Retainer
32	WCI 08068015
