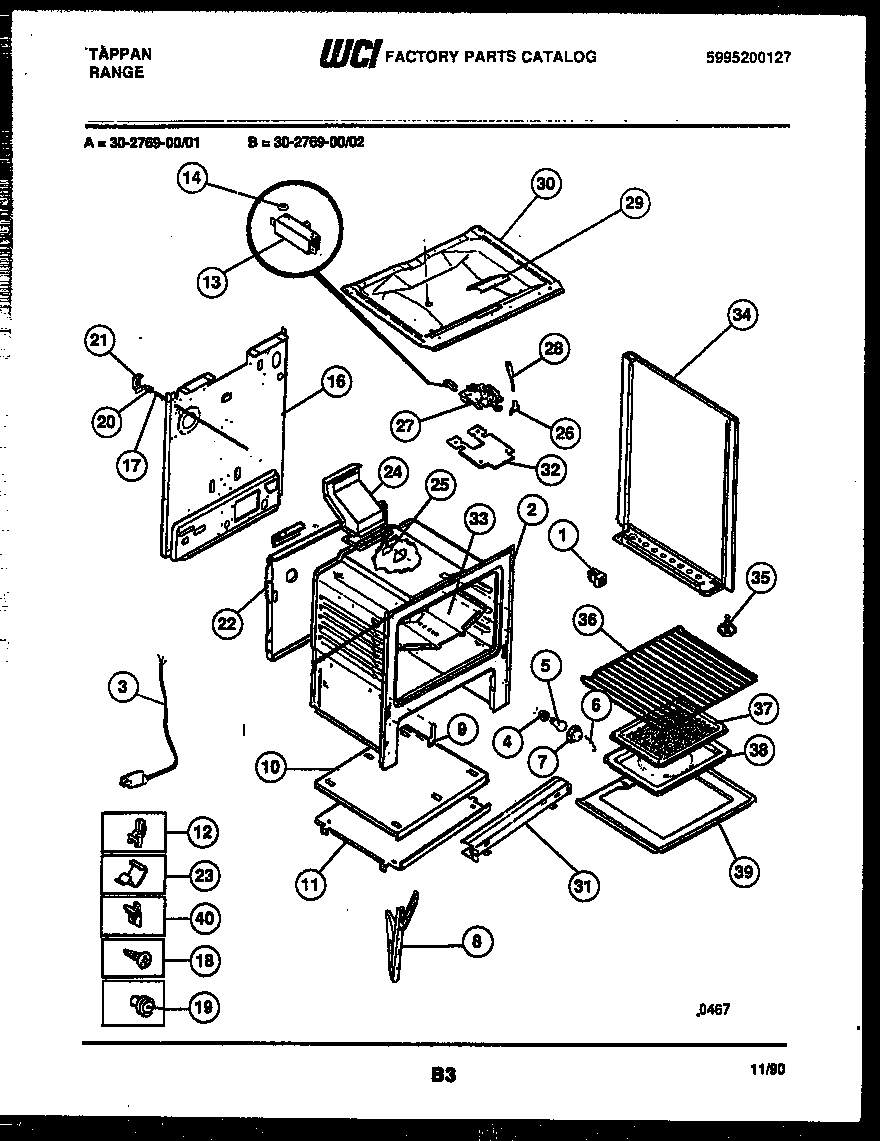

30-2769-00-01 06 – BODY PARTS

30-2769-00-01 06 – BODY PARTS

Written by

in

30-2769-00-01 06 – BODY PARTS

Products

PositionProduct
*35839WCI 191S018F03
*35839WCI 3131590
*35839WCI 08068018
*35839ANTI-TIP KIT (NOT ILLUSTRATED)
*35839SHIELD-OVN TOP
1SPACER-BODYSIDE, (8)
35304515659 Frigidaire Oven Power Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8CHAN-DOOR HINGE (2)
9WCI 3131570
10WCI 3131951
11WCI 3131313
11AWCI 08067992
125303284616 Frigidaire Range Bulb Clip Thermostat
13WCI 3131672
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
18316282700 Frigidaire Oven Screw
193131903 Frigidaire Door/Drawer Bumper
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25ASHIELD-LATCH (NON-ILLUSTRATED)
25316542102 Frigidaire Flue Gasket
25BWCI 08013188
26WCI 530801597
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH
33WCI 3200836
34APNL-BODYSIDE LH-ALMOND
34APNL-BODYSIDE LH-WHITE
34PNL-BODYSIDE RH-WHITE
34PNL-BODYSIDE RH-ALMOND
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BTTM-OVEN
39A316064600 Frigidaire Oven Support
39D08067973 Frigidaire 0 Insulation
39BWCI 08067961
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39GINSULATION, OVEN WRAPPER
39FSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
39EINSULATION, OVEN TOP
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
