30-2769-00-02 02 – BACKGUARD – Aparts

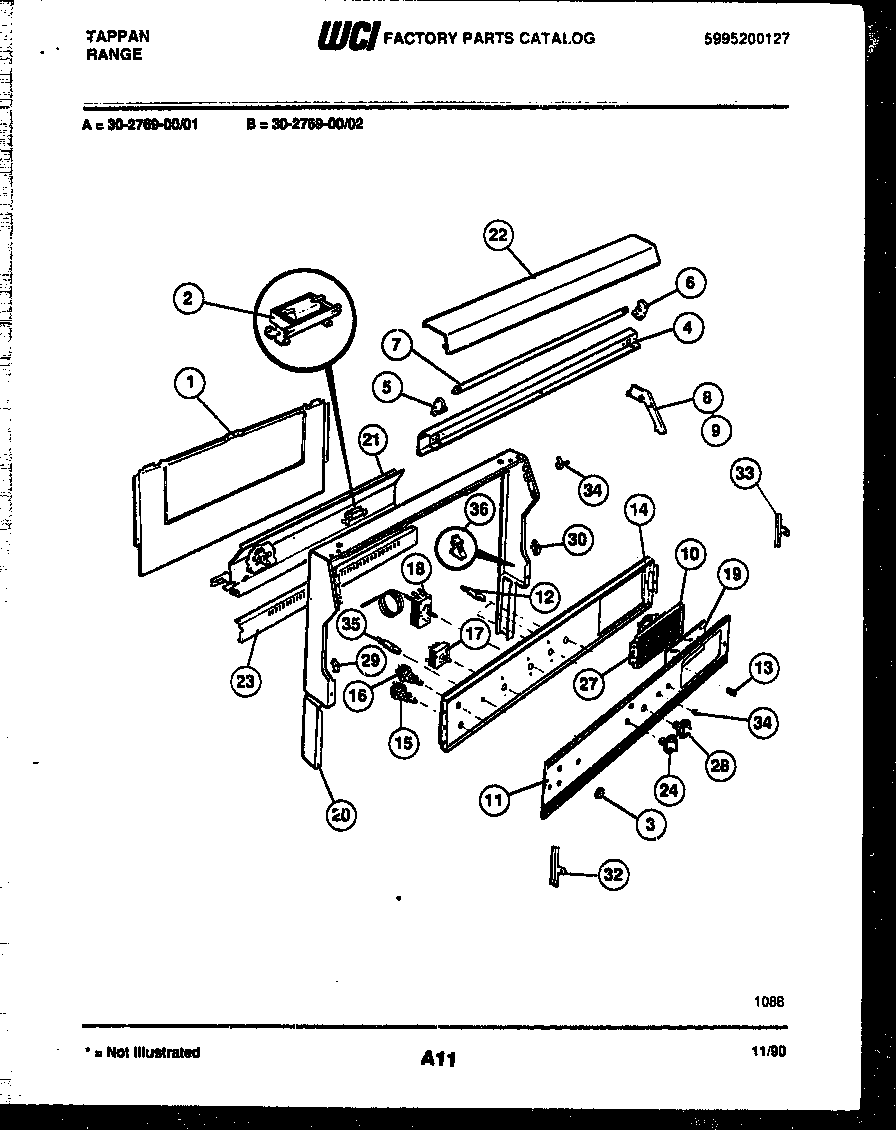

30-2769-00-02 02 – BACKGUARD

Products

Position	Product
1	SHIELD-BACKGUARD,REAR WALL
2	WCI 5303051115
3	WCI 5303011507
4	WCI 3131277
5	RECEPTACLE-FLU LT LH
6	RECEPTACLE-FLU LT RH
7	BULB-FLUOR
8	WCI 3204609
9	WCI 3204610
10	ELECTRICAL CLOCK
11	WCI 3205466
12	WCI 5308037896
13	KNOB-CLOCK
14	PLATE - INST MOUNTING
15	WCI 5303200479
16	SWITCH FL LIGHT
17	SWITCH SELECTOR 5 POS
18	WCI 3203199
19	WCI 3201695
20	WCI 3204862
21	TRIM-LWR SPLSHR (ALMD)
21	TRIM-LOWER SPLASHER (WHITE)
22	WCI 3204614
23	WCI 3131241
24	WCI 3205464
27	RETAINER, CLOCK GLASS, (2)
28	KNOB-SELECTOR SWITCH
29	CAP-LH
30	CAP-RH
32	TRIM-GLASS RETAINER,LH
33	TRIM-GLASS RETAINER,RH
34	JEWEL LENS-AMBER
35A	WCI 3131468
35D	WCI 3016408
35	INDICATOR LIGHT-LOCK (1)
35B	WCI 3204745
35C	RETAINER-LENS
36	SUPPORT-BACKGUARD (2)
