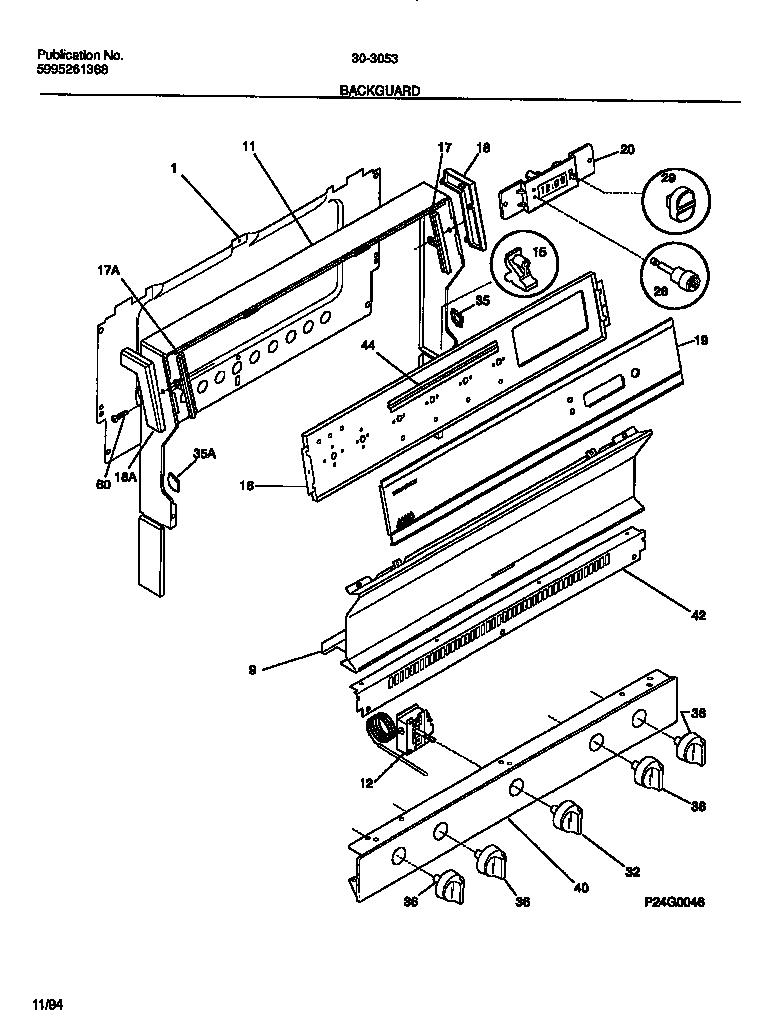

30-3053-00-02 02 – BACKGUARD

Products

Position	Product
*42960	316021105 Frigidaire Oven Screw
*42961	WCI 5303281584
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043501
11	WCI 3204755
12	316032411 Frigidaire Stove Temperature Control Thermostat
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17	TRIM-GLASS RETAINER,RH
17A	TRIM-GLASS RETAINER,LH
18	WCI 3204747
18A	WCI 3204746
19	WCI 316034542
20	WCI 5303272309
28	BUTTON-CLOCK
29	KNOB-TIMER BUTTON
32	WCI 3205115
35	CAP-RH
35A	CAP-LH
36	KNOB-TOP VALVE, (4)
40	WCI 316009230
42	WCI 3131241
44	WCI 3131468
60	SCREW-END CAP
