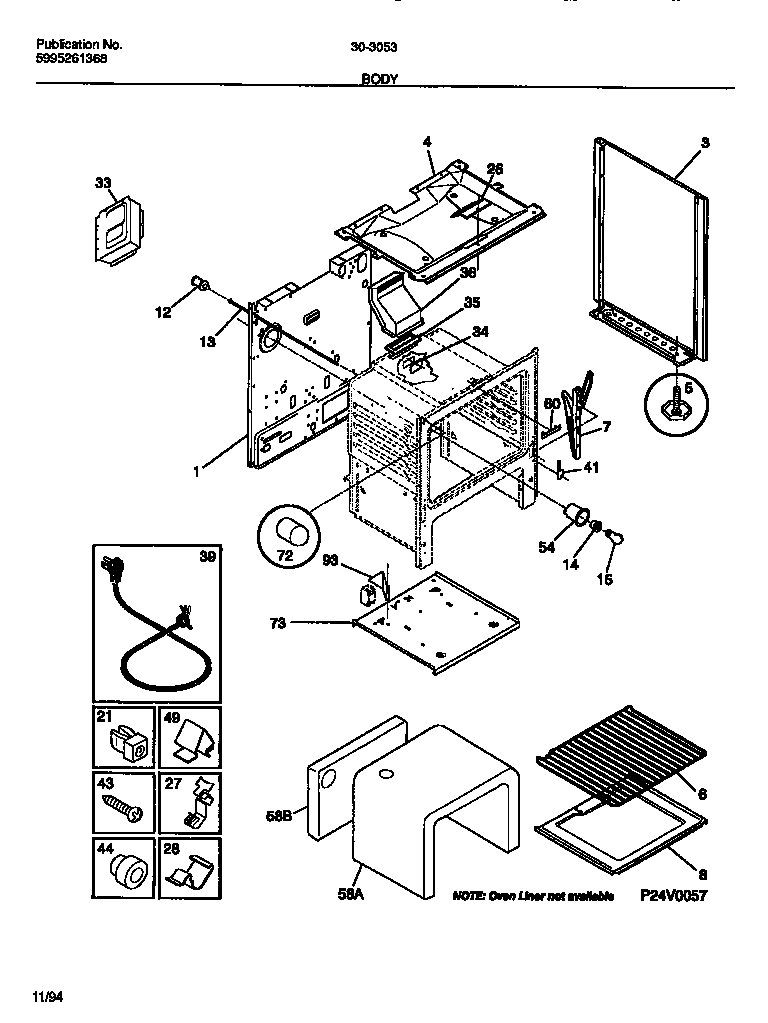

30-3053-23-02 04 – BODY

30-3053-23-02 04 – BODY

Written by

in

30-3053-23-02 04 – BODY

Products

PositionProduct
*42970WCI 08067961
*42964TOUCH, UP PAINT, ALMOND (NI)
*42962WCI 5303280614
1WCI 316029405
3WCI 5303269545
3WCI 5303269543
4WCI 316011905
5WCI 3934058
5SCREW-LEVELING
5316116000 Frigidaire Screw
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
8316064600 Frigidaire Oven Support
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21SPACER-BODYSIDE, (8)
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
395304515659 Frigidaire Oven Power Cord
41WCI 3131570
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
493205821 Frigidaire Clip
54WCI 5303271606
58AINSULATION, OVEN WRAPPER
58BINSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
72COVER-LIGHT/SWITCH ROD
73BASE-BROIL
93WCI 316055501
