30-3053-23-03 05 – TOP/DRAWER

30-3053-23-03 05 – TOP/DRAWER

Written by

in

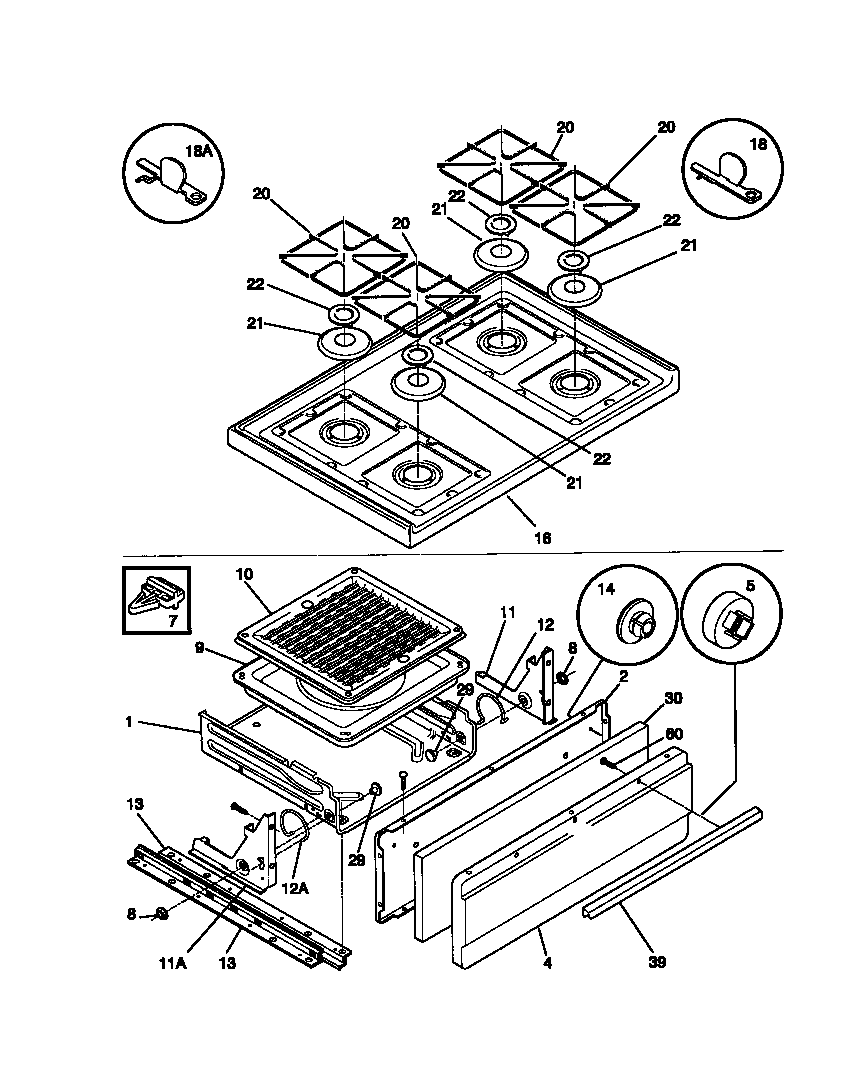

30-3053-23-03 05 – TOP/DRAWER

Products

PositionProduct
*18086131243700 Frigidaire Screw
*18085WCI 5303281584
1DRAWER-BROILER
2WCI 3202803
4ASCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4WCI 316056206
5FSTNR, SPACER (2)
7GLIDE-DRAWER, REAR
8WCI 3131386
9PAN-BROILER
10WCI 5303131356
11BRACKET-BROILER HINGE, RH
11ABRACKET-BROILER HINGE, LH
12AWCI 3018618`
12SPRING-BROILER, RH
13WCI 3131153
14WCI 3206216
16BGUSSET-MTG (LH) (NON-ILLUSTRATED)
16AGUSSET-MTG (RH) (NON-ILLUSTRATED)
16WCI 316010409
18ABRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
20WCI 5303269632
21TRIM RING-BURNER, BLACK, SMALL, (4)
22316010901 Frigidaire Burner Cap P1
29PIN, HINGE (2)
30INSULATION, BROILER DRAWER
39HANDLE-DRAWER, BRUSHED CHROME
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
